PURPOSE OF SPANDREL OVER ON MARKING PLAN

  • When preparing marking plans, we need to show all spandrels set-outs on the plan layout that are fixing into the slab over. (Refer Fig.01 & 02)
  • It will help to find out which spandrel comes at level above.
  • While scheduling the current level panels, mean time it will helps to scheduling the above level spandrels.
  • And, it will help to manufacturing and erecting the spandrels with lower-level panels at same time.
  • For site crews, they also aware when pouring slab and erecting panel sequence without any time delay on site with reference marking plan.
  • It will reduce time consumption to plan for both manufacturing and erecting panels.

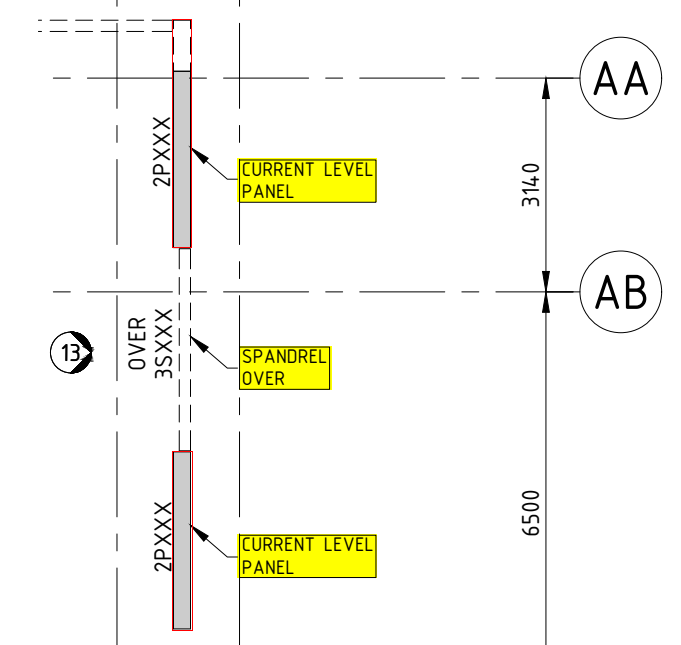

    Fig. 01 (Snap for Reference Marking Plan)

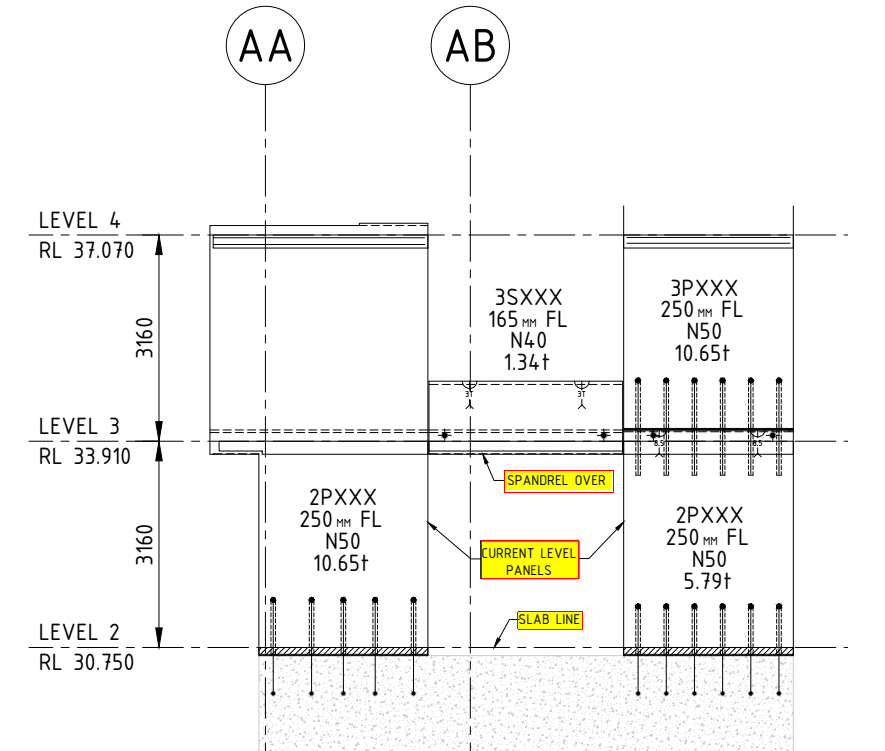

Fig. 02 (Snap for Reference Elevation)
