Life Saving Facility – Smiths Beach

Author: Pon Dhileepan

This was my first project as a modeler, completed in January 2018.

A circular structure steel structure surrounded by timber battens was modelled & detailed for Smiths Beach, Yallingup WA. Completed site image is attached at the bottom

The structure consists of a bottom ring, a body made as circular cage & a top ring at 5° slope. The body cage is covered by curved SHS flames that has cleats to pick up the outer battens. The entire structure rests of 4 CHS columns.

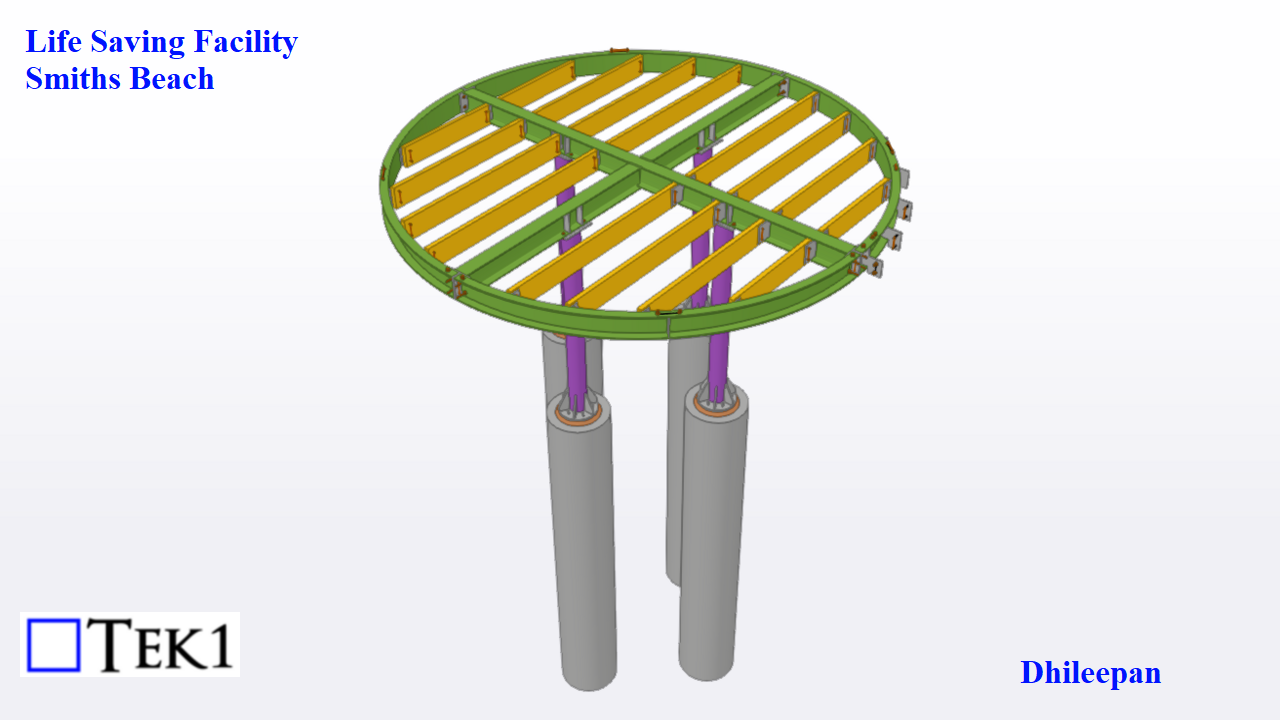

BOTTOM RING

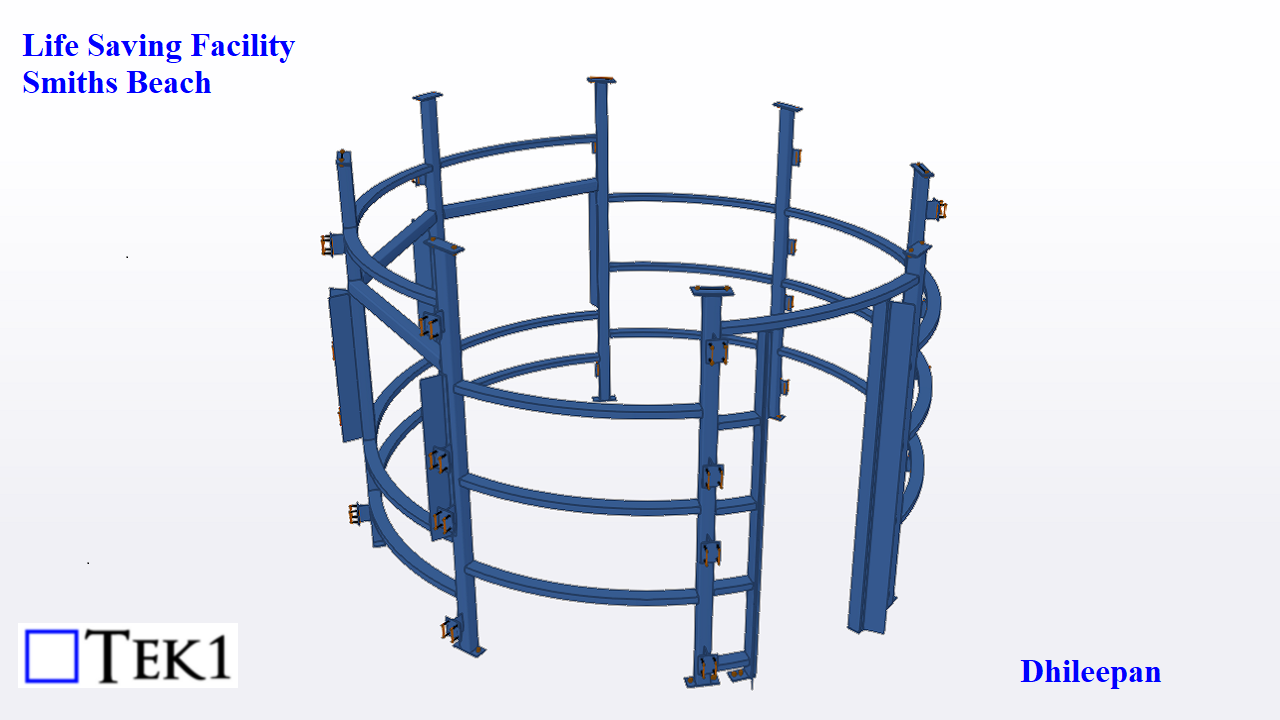

BODY CAGE

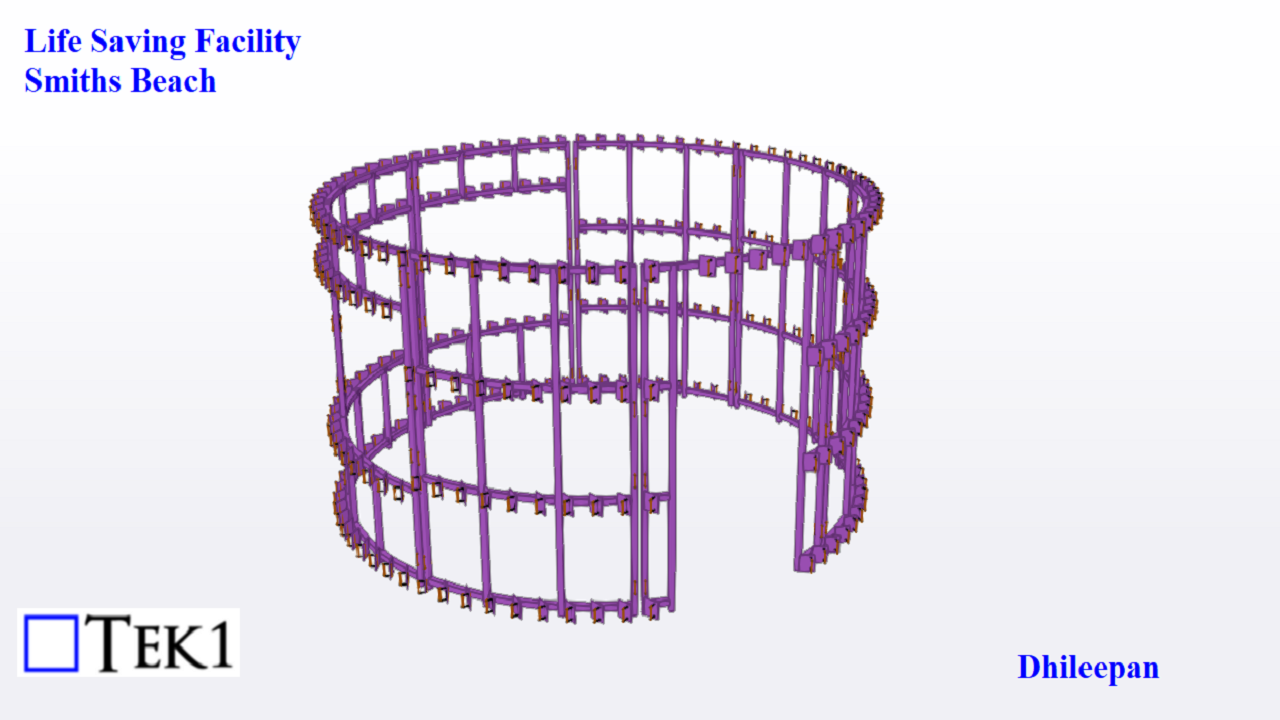

COVER FRAMES

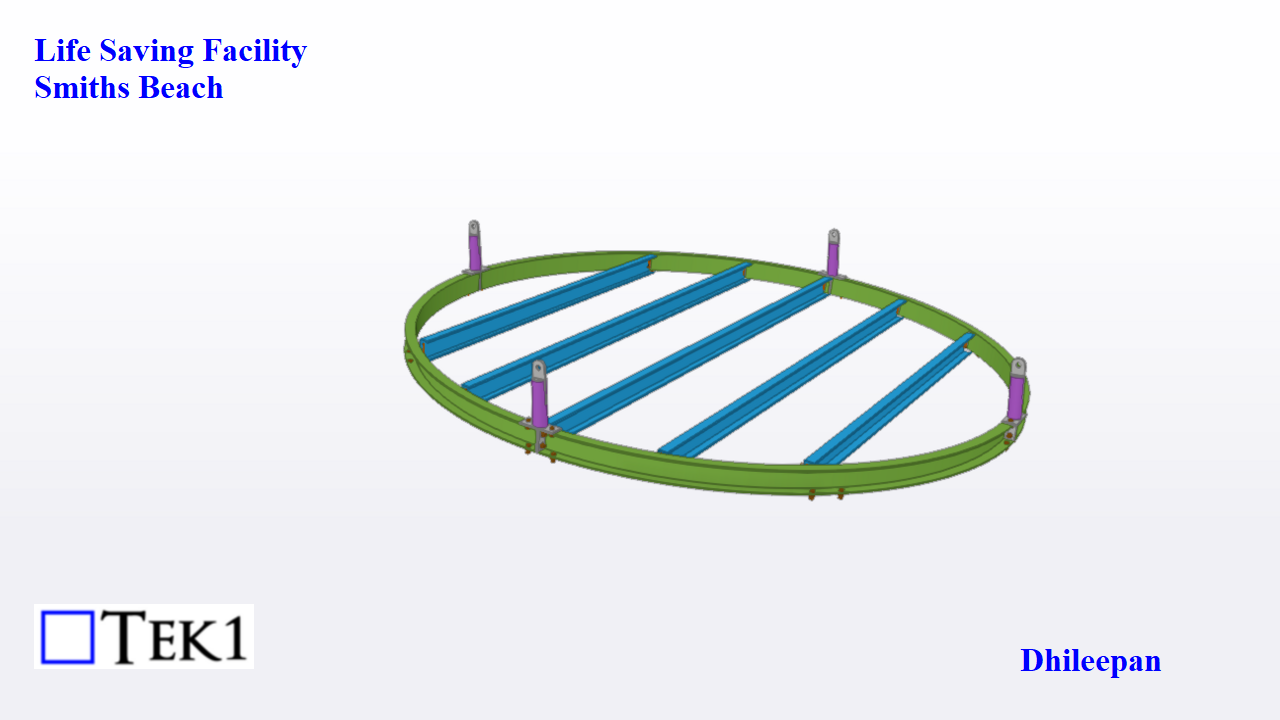

TOP RING

There are 3 operable windows & a door, all made of steel frames. Since the structure is elevated from the ground, a staircase of arithmetically increasing width is also detailed to access the life saving facility.

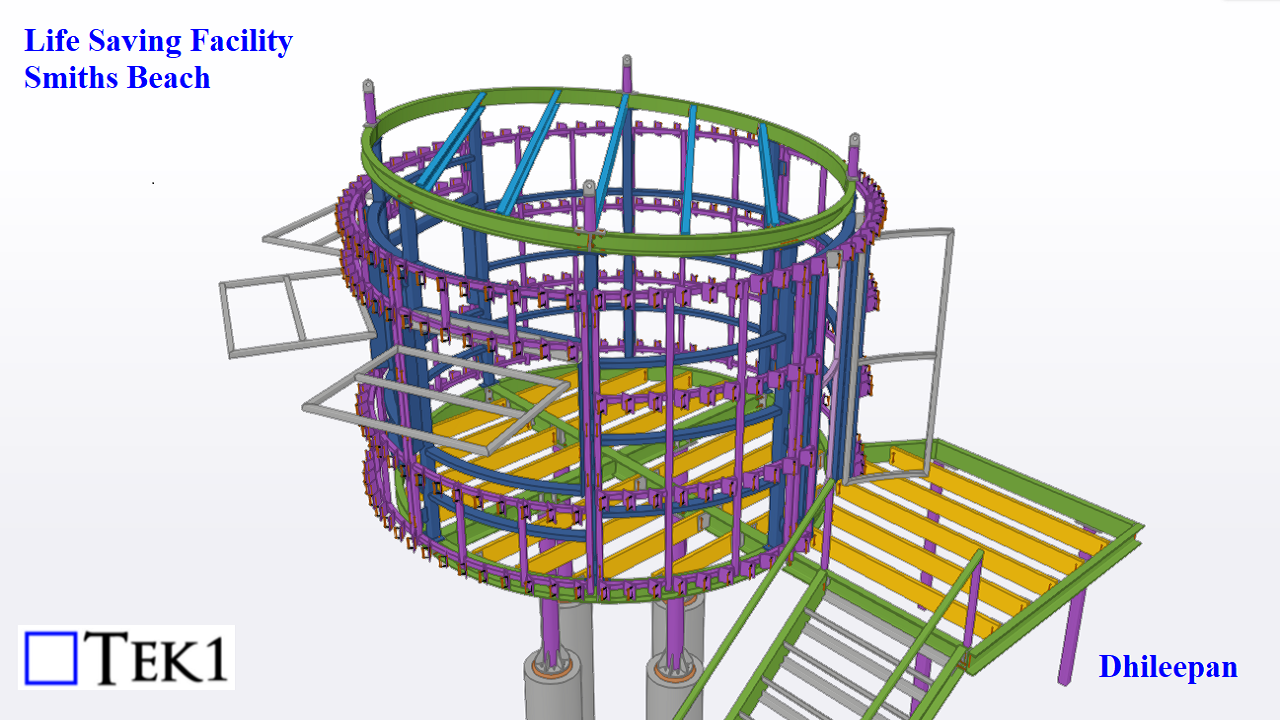

STEEL STRUCTURE

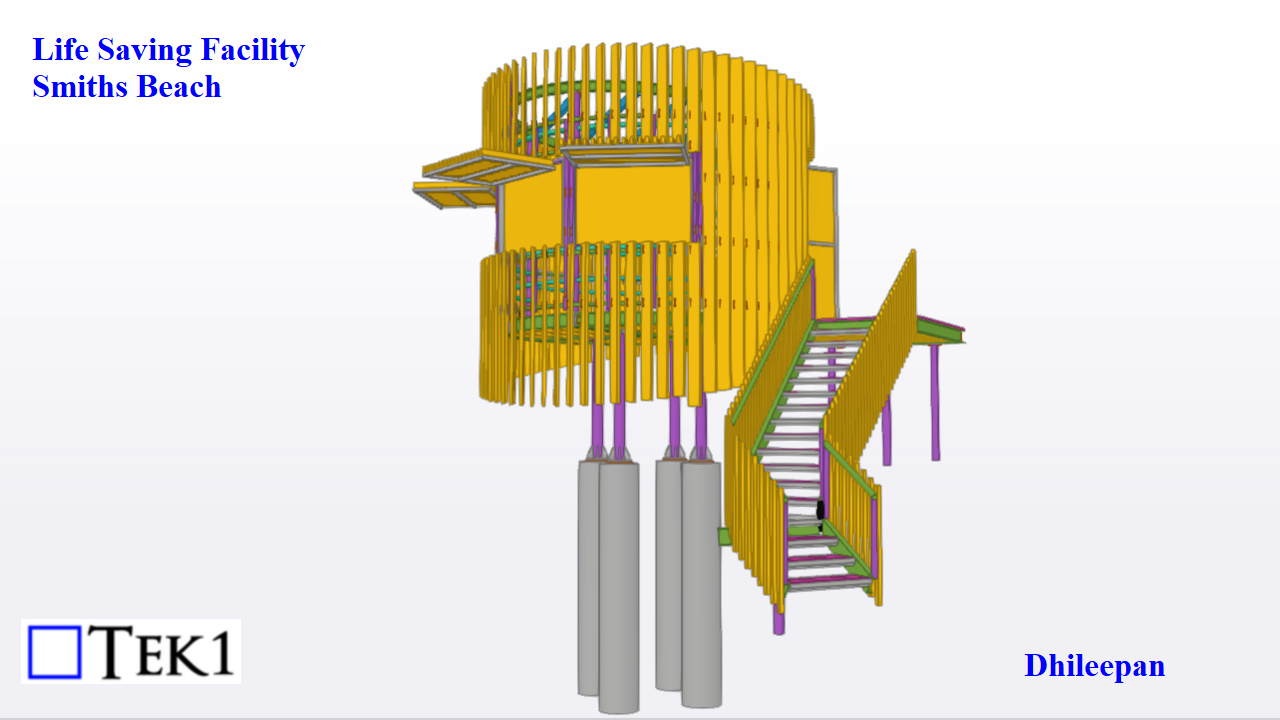

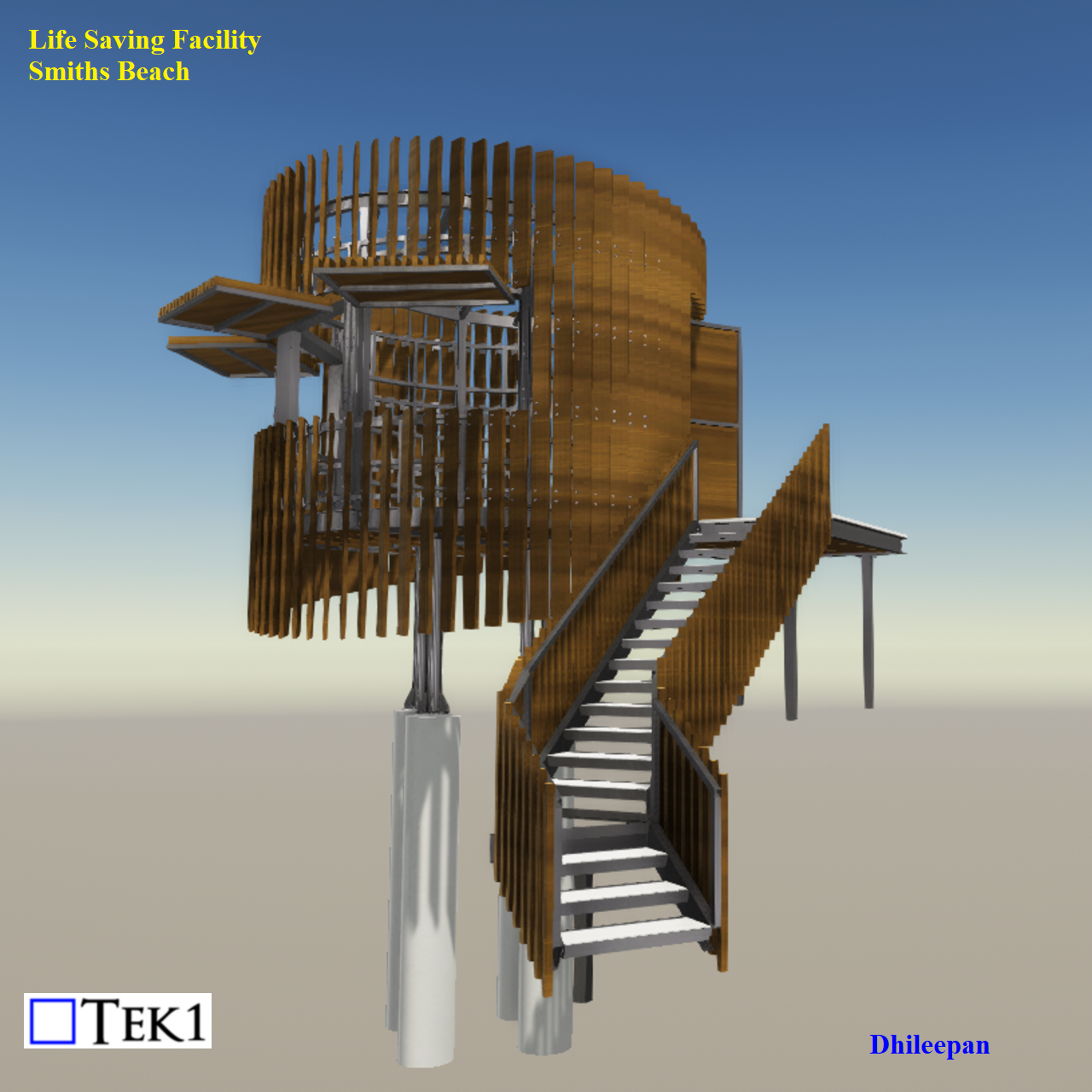

FINISHED TEKLA MODEL

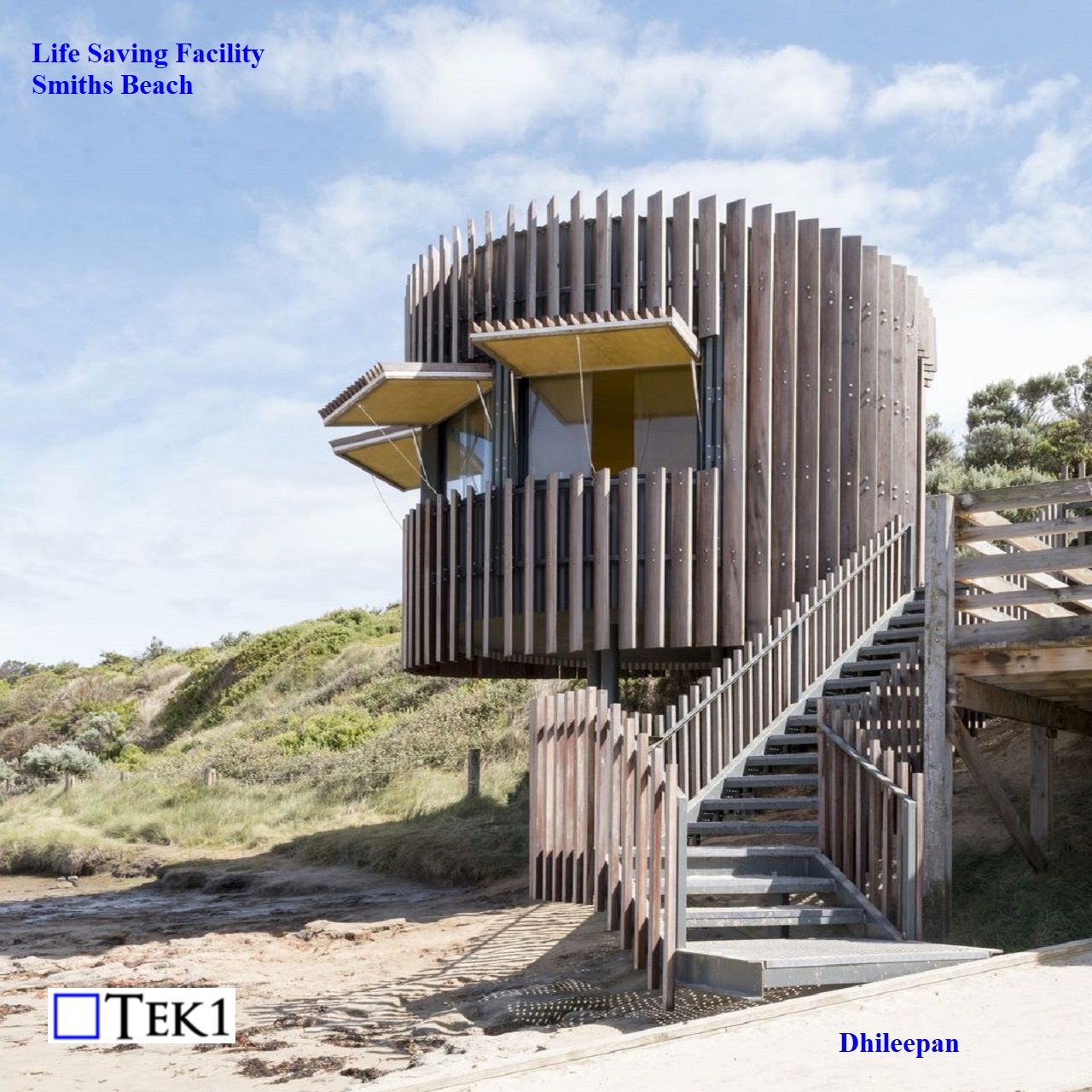

FINISHED SITE IMAGE
