ARCH ELEVATION DETAILS AND DRAWING STUDY

  1. For Architecture elevation, mainly we used for door/window openings height and its location details. (If any other service drawings available means we have to consider that too).
  2. This elevation helps to take the FFL/SSL value of each level.
  3. It’s showing also the RL of parapet and roof level walls.
  4. For patterns, grooves and other elevation design details will be shown on architectural elevation.
  5. The different types of panels finish also shown on elevation where it’s required.
  6. They given all the side of elevation and section views for overall building profile appearance.
  7. It also shows the slab profile appearance and it’s RL’s. (Like floor slab, ramp, stair landing, and etc.,)
  8. Some cases, the arch core elevations also provided separately for stair and lift. It’s shown the details like door and window set-out, fire penetration set-out, landing slab RL and etc.

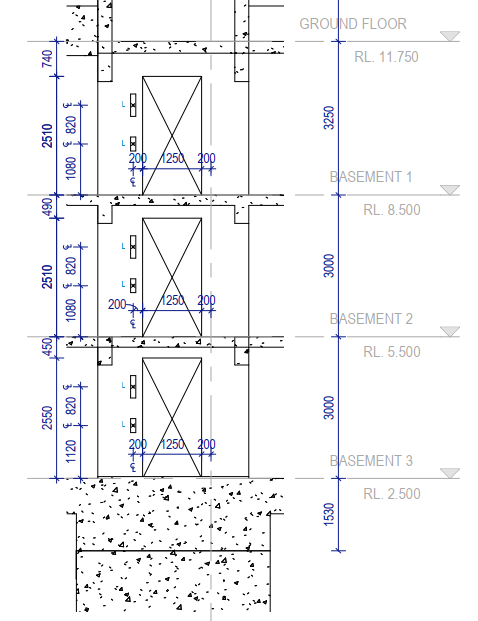

Sample Arch core elevation (Fig.01)

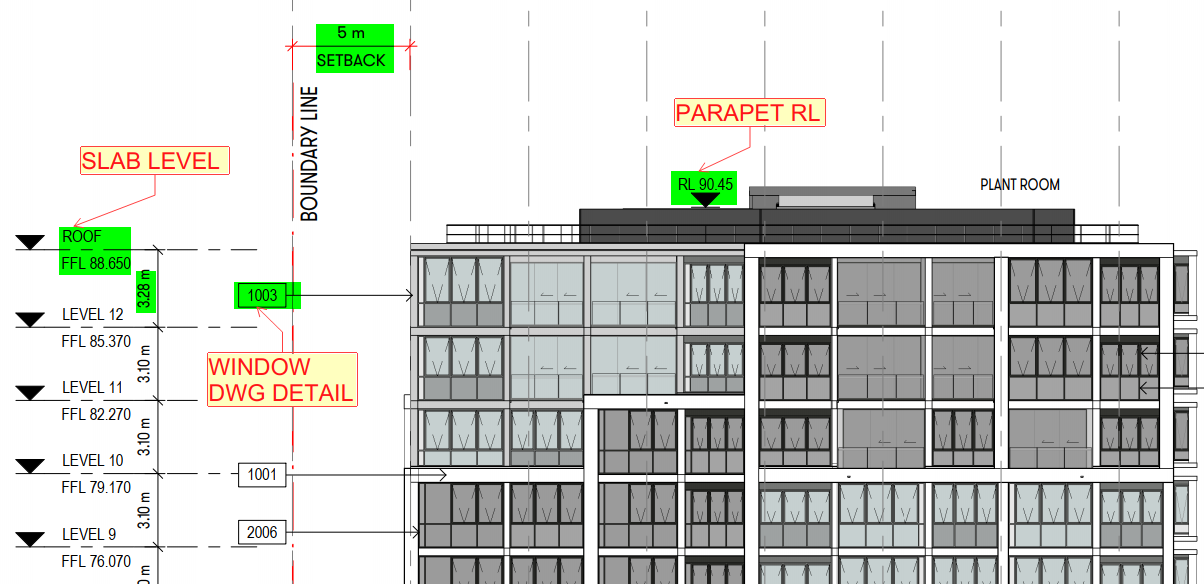

Sample Arch elevation (Fig.02)
