Designing Bent Members

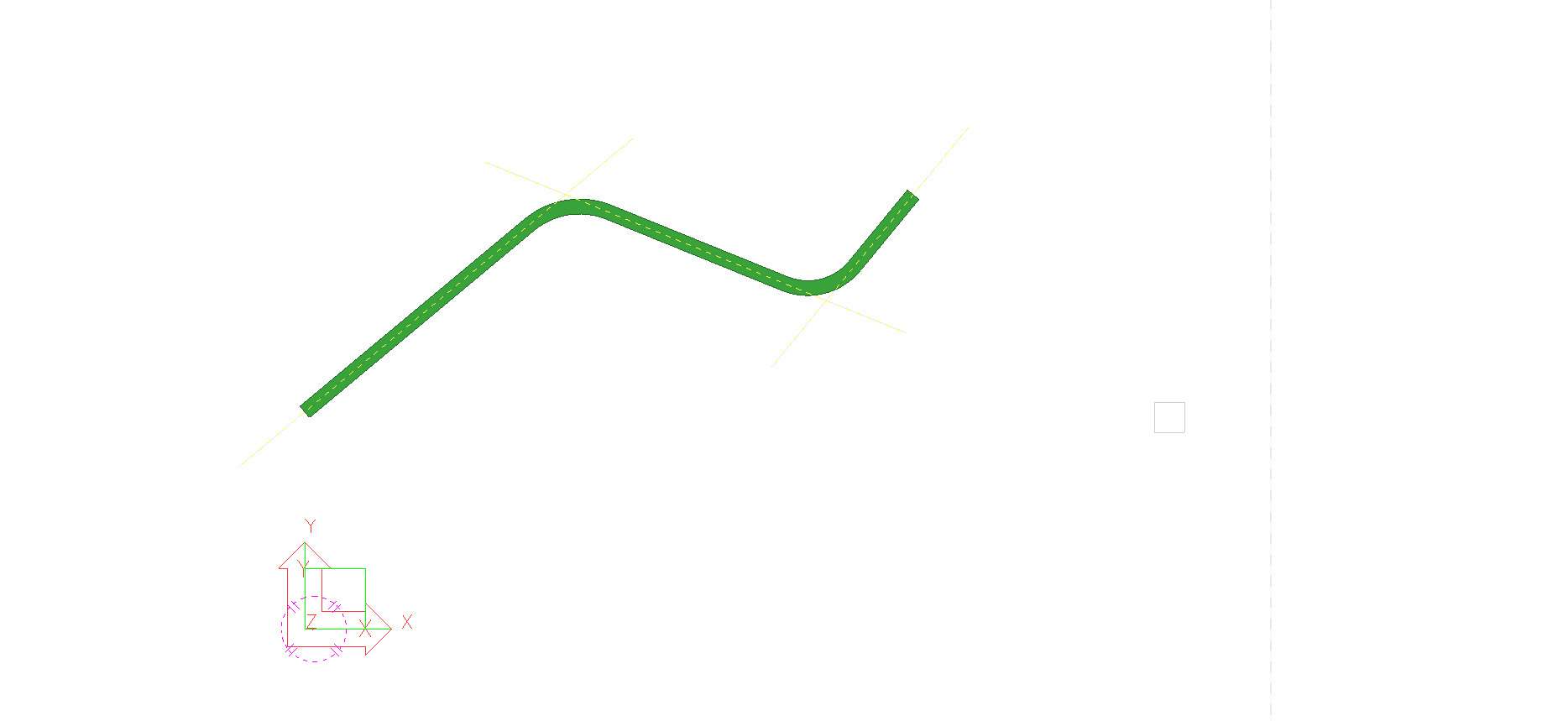

Consider the below member: notice how it has two bends in it.
When designing such a member the detailer needs to be aware of how these members are made.
Check out this video for a beautiful explanation:
That is just how handrails are produced. The steel members are bent around a radius set on a machine. If the design is too complex, then detailers need to be aware that fabricators may resort to welding two pieces of metal together to make it work.
