At Tek1, we prioritize meeting our clients’ diverse needs with innovative solutions. Recently, a client requested a comprehensive weld report detailing weld type, size, length, contour, and whether it was site or shop welded. Additionally, they required each weld to be numbered and included in the report.
To fulfill this request, Tek1 developed a tailored solution in-house. We seamlessly integrated weld numbering into our assembly drawings, allowing for easy identification of each weld.
The process begins during the modeling stage, where our modelers define weld attributes such as size and type. These specifications are meticulously controlled within components and individual welds.
Once the modeling stage is complete, all welds are selected and assigned unique numbers. Leveraging this data, we generate a customized weld report that includes vital details such as weld number, assembly location, and the parts being welded.
Through this streamlined approach, Tek1 ensures accurate and comprehensive weld documentation, empowering our clients with the information they need for successful project execution.

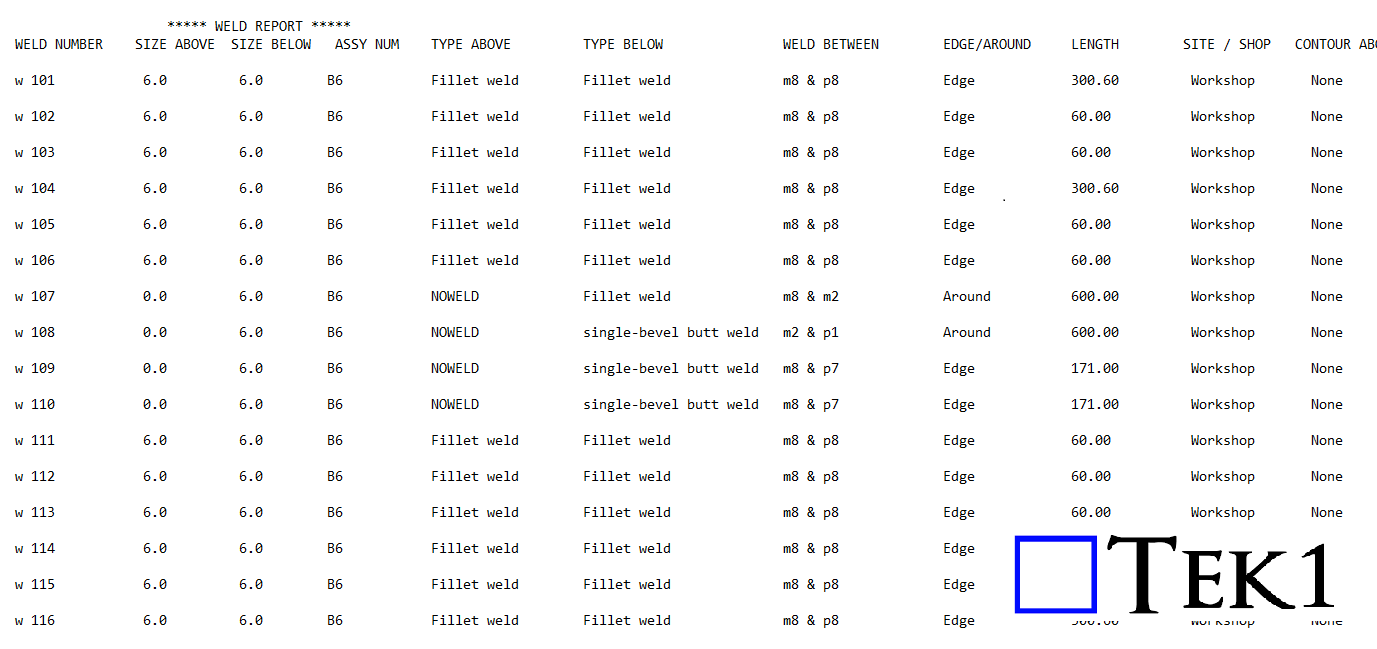

A sample report is as follows:
