Author: Pon Dhileepan

This is machinery skid made of steel. The main frame made of UB200*18 holds an Alfa Laval Filter (ALF) and a pump. A pedestal out of 75*6EA is bolted to the UB200*18 frame for a strainer. 600mm wide walkway made of chequered plates are placed on top to access the mechanical units. Holes are pre drilled in the steel frame to match the size & location of the mechanical units.

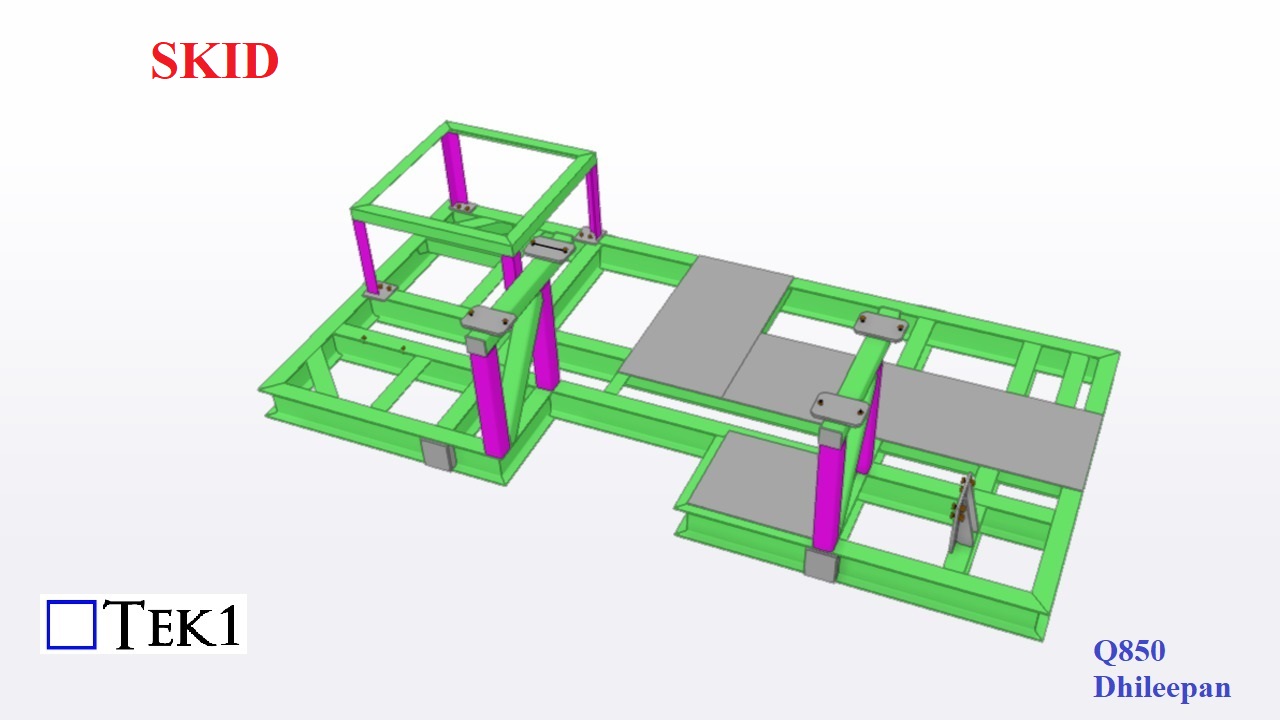

Steel Skid Frame with Walkway Chequered Plate

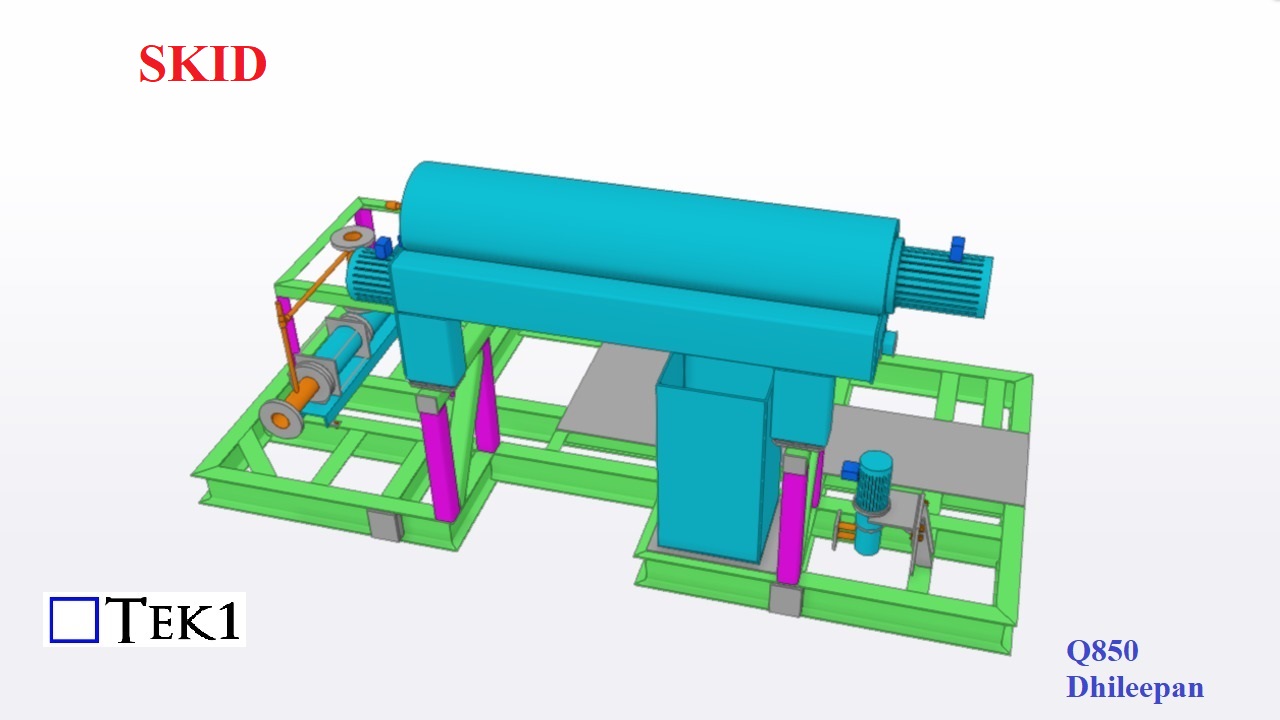

Steel Skid with Mechanical Units
