Skew Cutting Col end to match Inclined End Plate

How to detail Column end when end plates are skewed

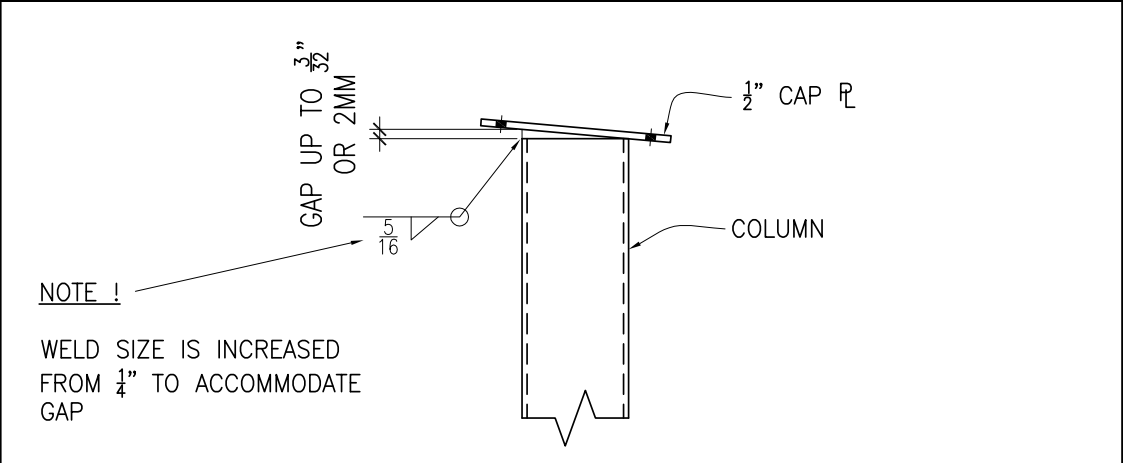

Here is a picture of an included end plate. Fabricators and easily weld and fill up upto 2mm. Hence there is no need to skew cut end plate. Will save a heap of time and cost in the fabrication shop.
