Can you spot the Problem#9



ARCH PLAN & RCP

Can you find any discrepancy from the above Structural and Arch design Snaps.



Hope you got it.

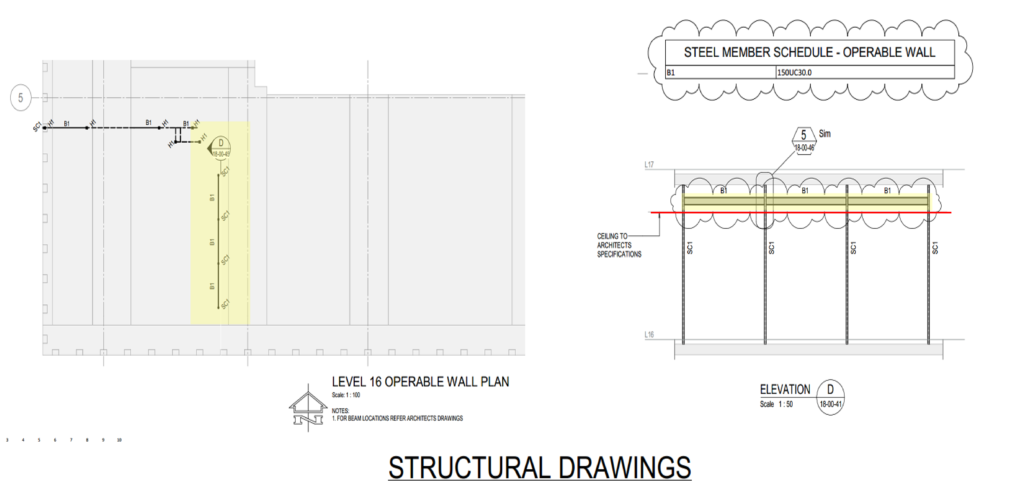

Profile of beam B1 is150UC30 from the structural drawing.

The beam comes below ceiling. It would not be an issue if the stud wall accommodates the beam. But, the thickness of the stud wall is only 92mm and the beam is 150UC30. The beam will be accommodated neither within the ceiling nor the stud wall.

So, we have changed the Beam B1 profile from 150UC30 to PFC200*75 to accommodate the member within the 92mm thick stud wall and asked for confirmation.

We attached model snap for better understanding to the Client.

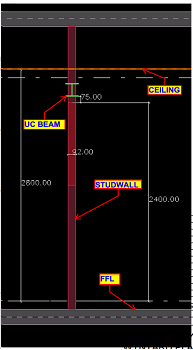

MODEL ELEVATION  SNAP

Client understood the issue we encountered and agreed to change the profile of the Beam B1.
