Can you spot the problem – #3

Hello friends

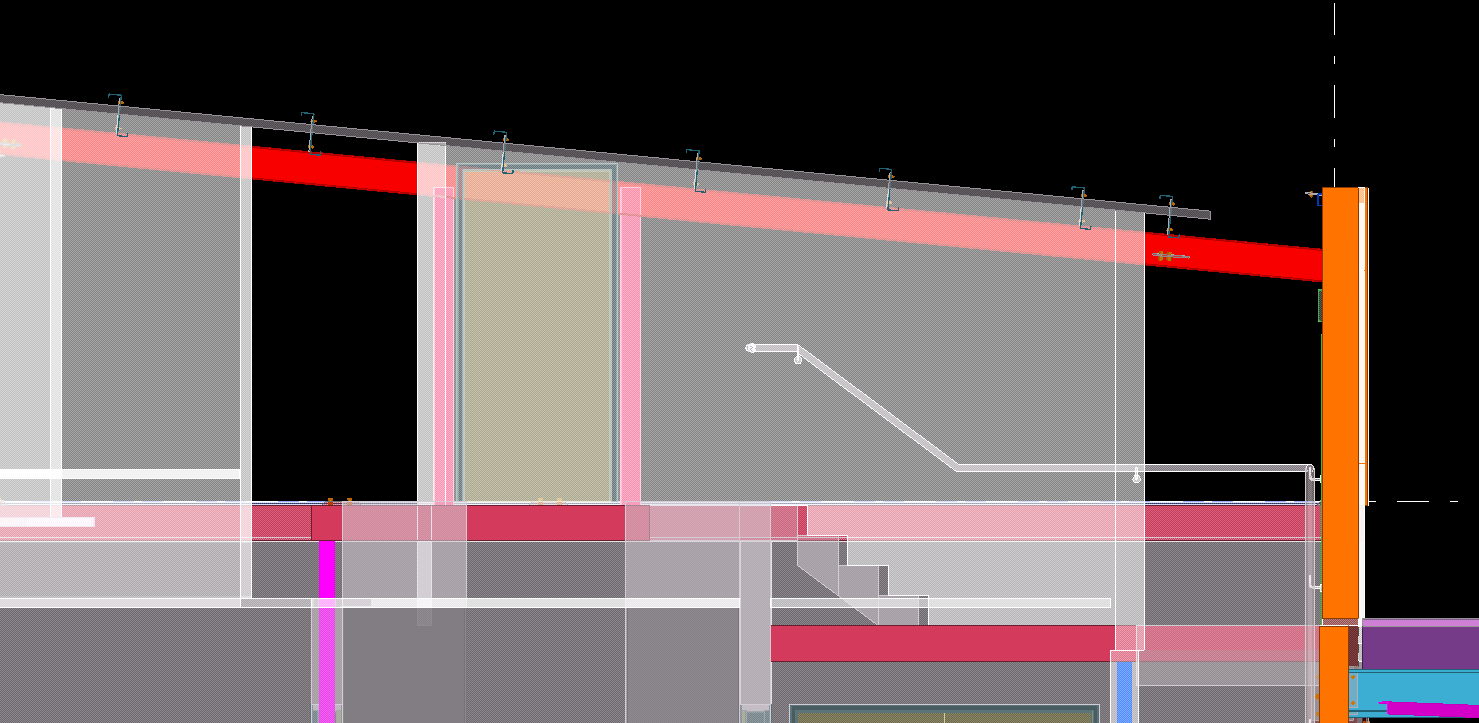

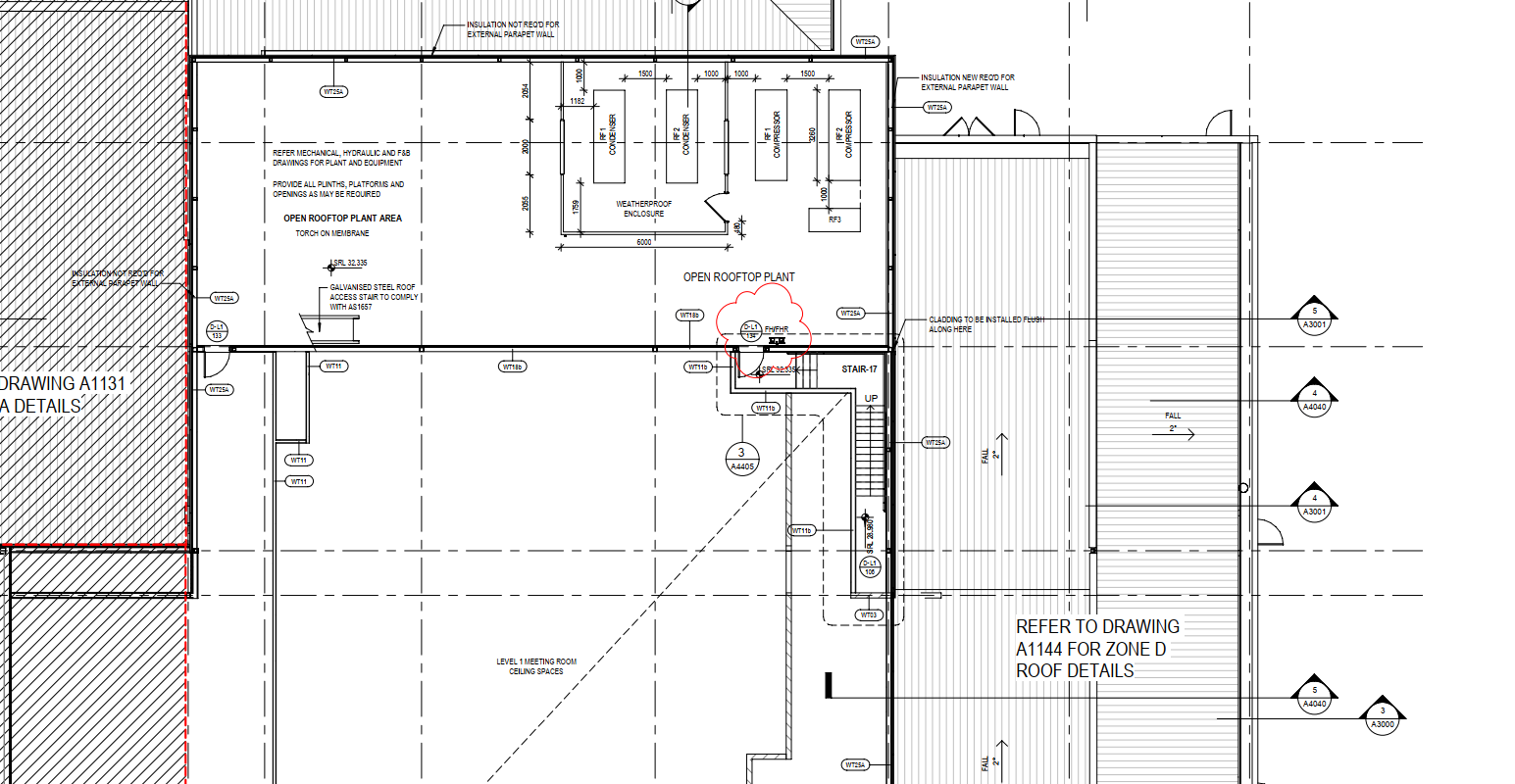

Consider the below drawings.

Do you notice any issues?



Can you spot any issues?

























Can you spot any issues?
Can you spot any issues?





























Can you notice any issues which may arise?
Can you notice any issues which may arise?







































Here were our suggestions:

Our detailers identified & noticed that the roof rafter falls at the door opening which runs at 5.5° slope.

The Roof rafter is concealed inside the stud wall, also the Stud wall runs above the Rafter up to the top of parapet RL. The height of parapet wall is the same throughout, hence the top of the wall runs at the same 5.5° slope as the roof.

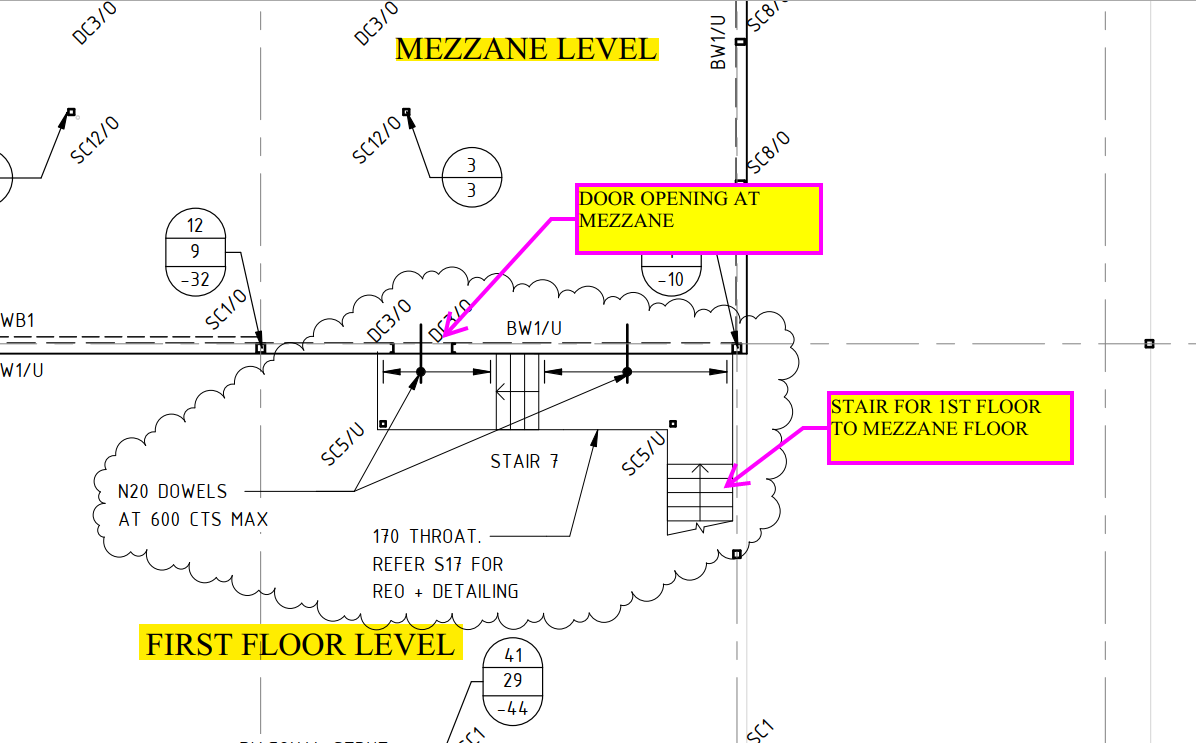

There is an access door near the lower end  of the stud wall/Roof. We noticed that the rafter falls inside the door opening and suggested the client to move the door & increase the Stair landing length accordingly.

The suggestion is accepted and the door is moved in such a way that there is enough clearance between the top of door opening and the rafter soffit.

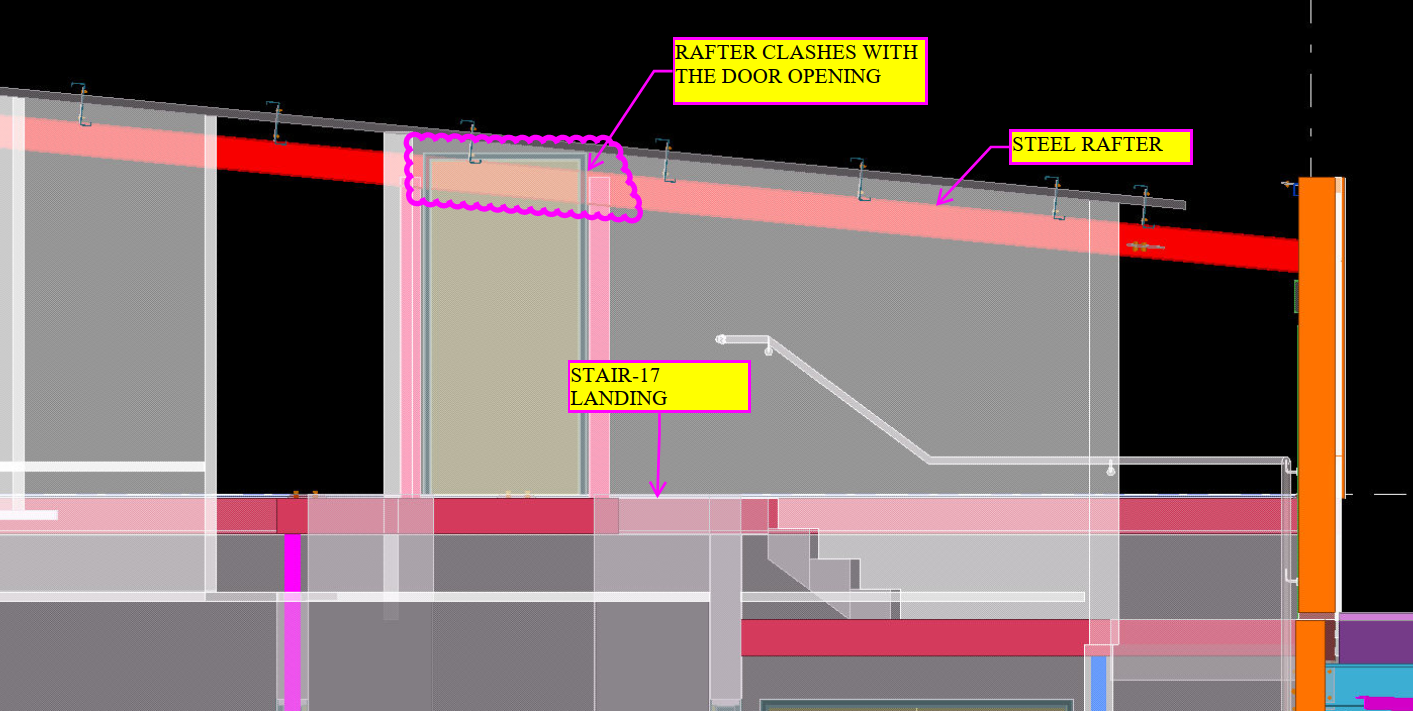

Rafter clashes with the door opening.
Rafter clashes with the door opening.

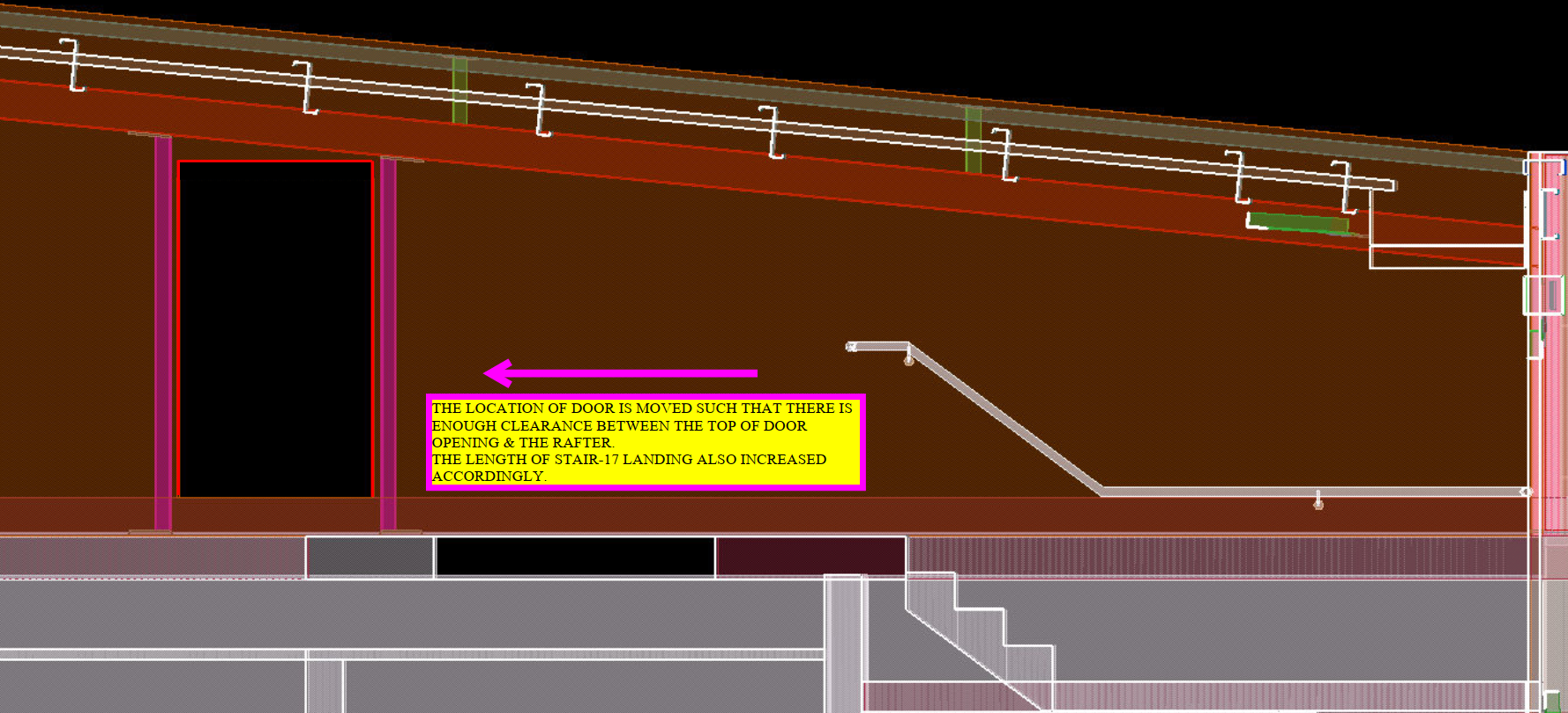

We can move the door to a new location.
