Staff Memo: What should my reference points be on my drawings (Detailing Tips)

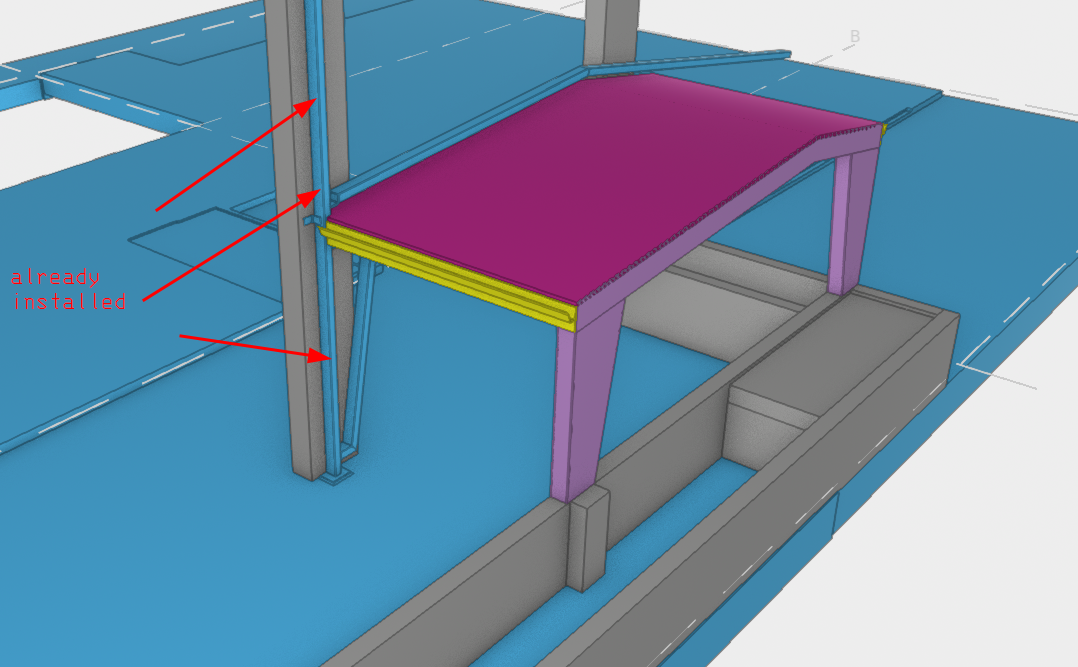

See the image below: there is a very serious potential issue here. Can you spot it?

If you want to see a live link – please click here:

What’s the problem?

Our steel is tied into concrete.

What’s wrong with steel on concrete?

  • The problem is that concrete is almost never poured correctly. It is never correct.
  • If your dimension and cut beams to concrete as a reference point, that means all your dimensions will be wrong – because the concrete is NEVER where you expect it to me.
  • What should you do?
  1. People agree to work to grid lines as reference points. You must dimension to gridlinesunless this is not applicable.
  2. Gridlines are typically not applicable when your steel ties into another structure (e.g. steel or to concrete). If it does, as in this case:
  3. Get a site measurement of where the existing structure is: and use that as a reference.
  4. But what you must never do is to dimension to an arbitrary structure without a site measurement.

What happened in this case?

  • In this case there was something already installed up against the concrete. So we must dimension everything to what is actually installed.

What happens if I dimension to concrete?

  • This means that your beams will not fit on site.
  • Which means you’ll get a very angry client: you will cost your client time and money.
  • This means your name and reputation will go down: clients will not want to deal with both you and our firm.

Summary:

What should I do?

  • Always make references to GRID LINES, not concrete or steel UNLESS you have a site measurement.
  • Never dimension to something upon which you do not know the location.
