Steps involved in shop drawing created from Mould
Process flow
- Profile creation in 3d environments
- We want to understanding the shapes , If we draw the 3d models clarified with the visuals, So we do profiles in 3d
- 3d model views are easy to understand the Profiles & more clarity
- Analyze the 3d/isometric views & clarity dimensional sections in shop drawings
- After finishing the model cross check the Profile clash, component clash, Perpendicular views & its properties.
- Mould creation
- created the mould for all the shapes.
- Get advice from the factory those who are making the mould for this shape of panels in precast concrete.
- Finalized the mould drawings.

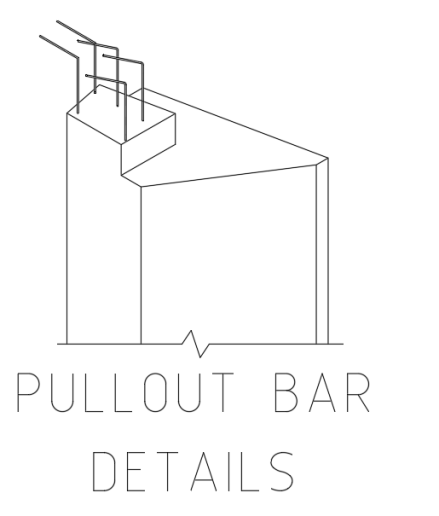

- Shop Drawing details for understanding

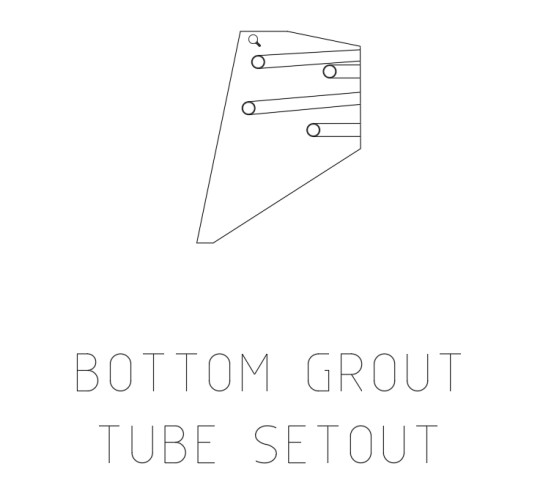

- Grout tube setouts

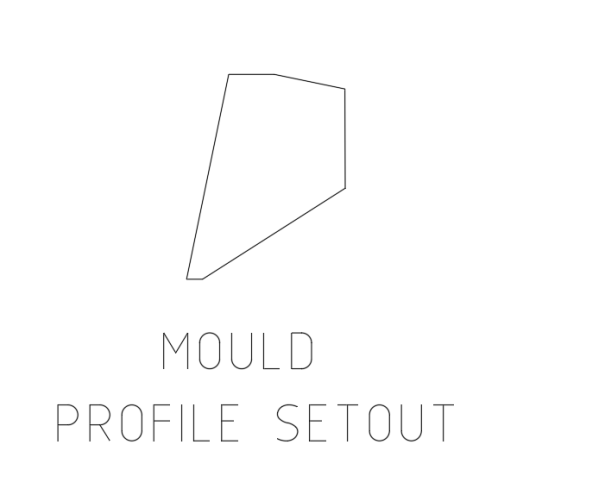

- Profile setouts

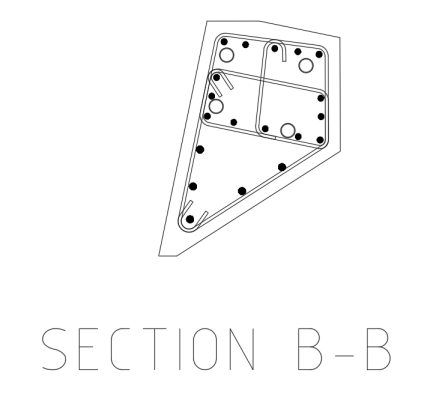

- Reinforcement clarity section & Isometric views

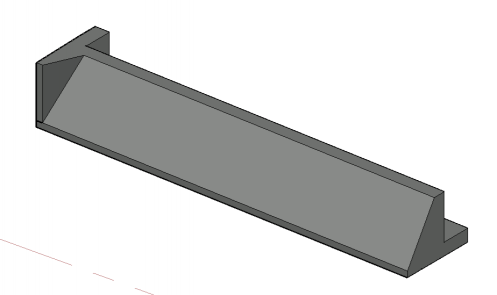

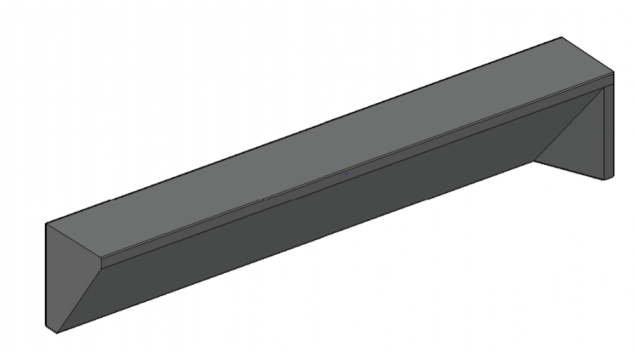

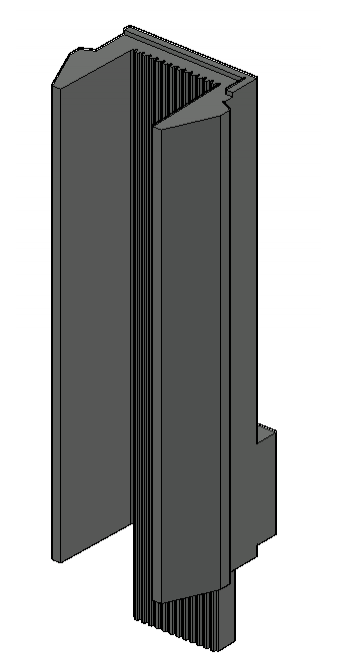

Shapes of the Precast in 3d Model

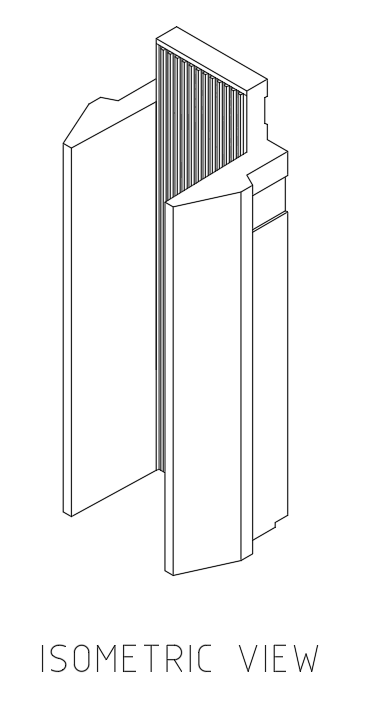

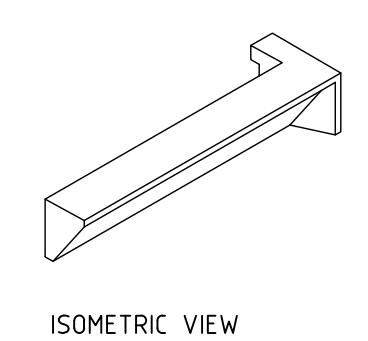

Isometric views shown in shop drawing for clear understanding
Final output of the building is
