ALTA FILAMENT PD (Precast Shop Tickets)

TYPES OF PRECAST WALL SHOP TICKETS

A. LITE WALL WITH DOOR OPENING :

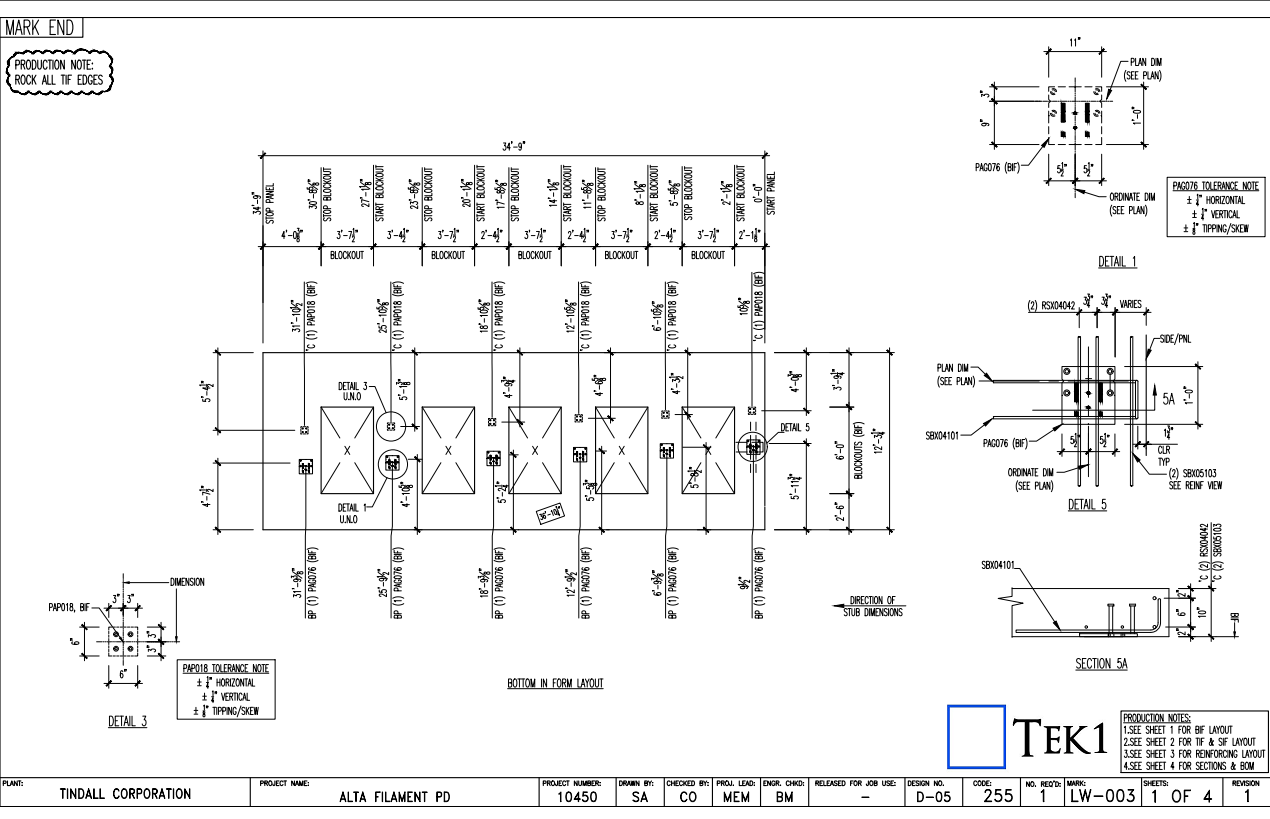

Sheet 1: Panel Profile, Components and their setout Placed in the Bottom In Face (BIF) of the Precast Panel.

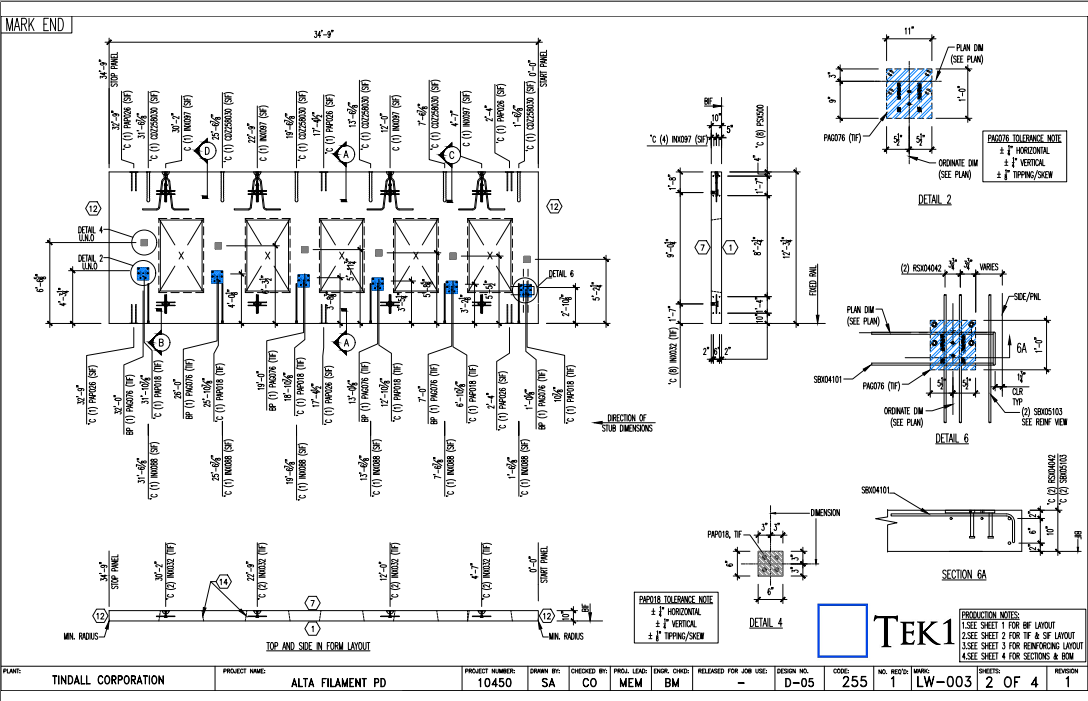

Sheet 2: Components and their setout Placed in the Top In Face (TIF) of the Precast Panel.

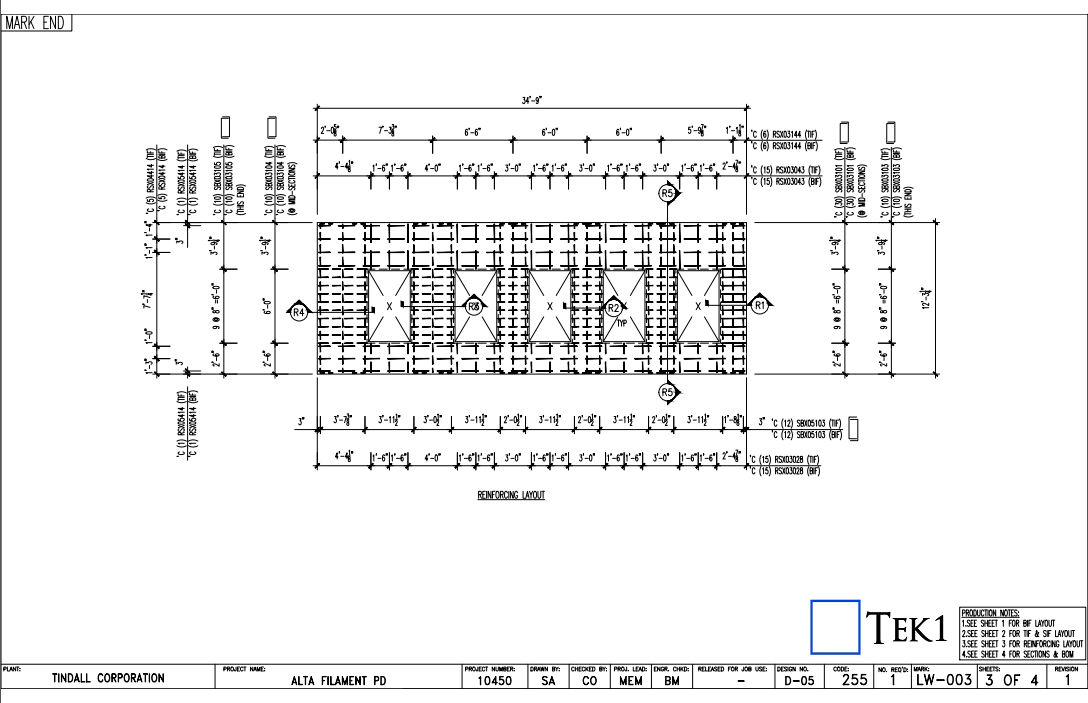

Sheet 3: The Reinforcement Setout on the Precast Panel.

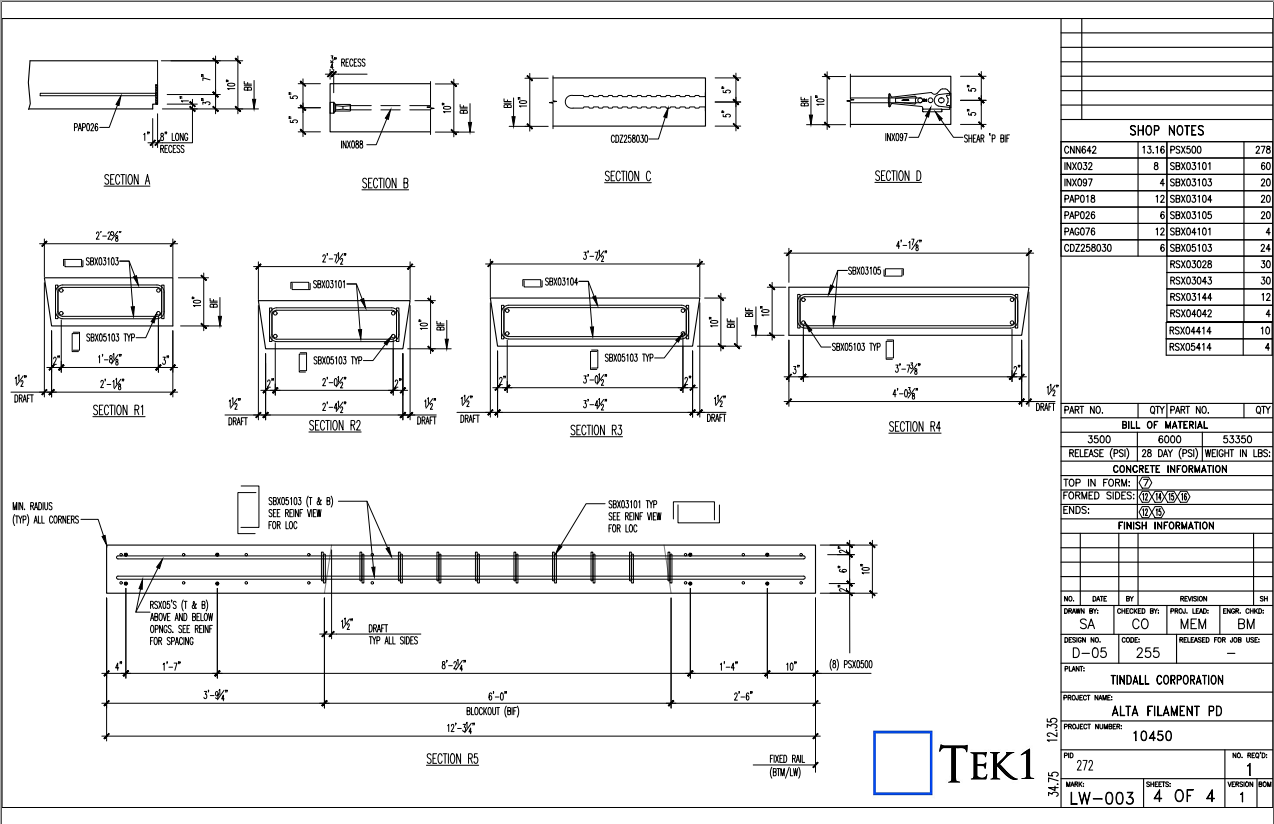

Sheet 4: Section Detail and Order Form List for the Precast Panel.

B. LITE WALL :

Sheet 1: Panel Profile, Reinforcement setout, and the Components Placement on both faces of the Precast Panel.

Since the reinforcement are not much complicated as like door opening , So they have shown in the Sheet 1 itself.

Sheet 2: Section Detail and Order Form List for the Precast Panel.

C. SHEAR WALL :

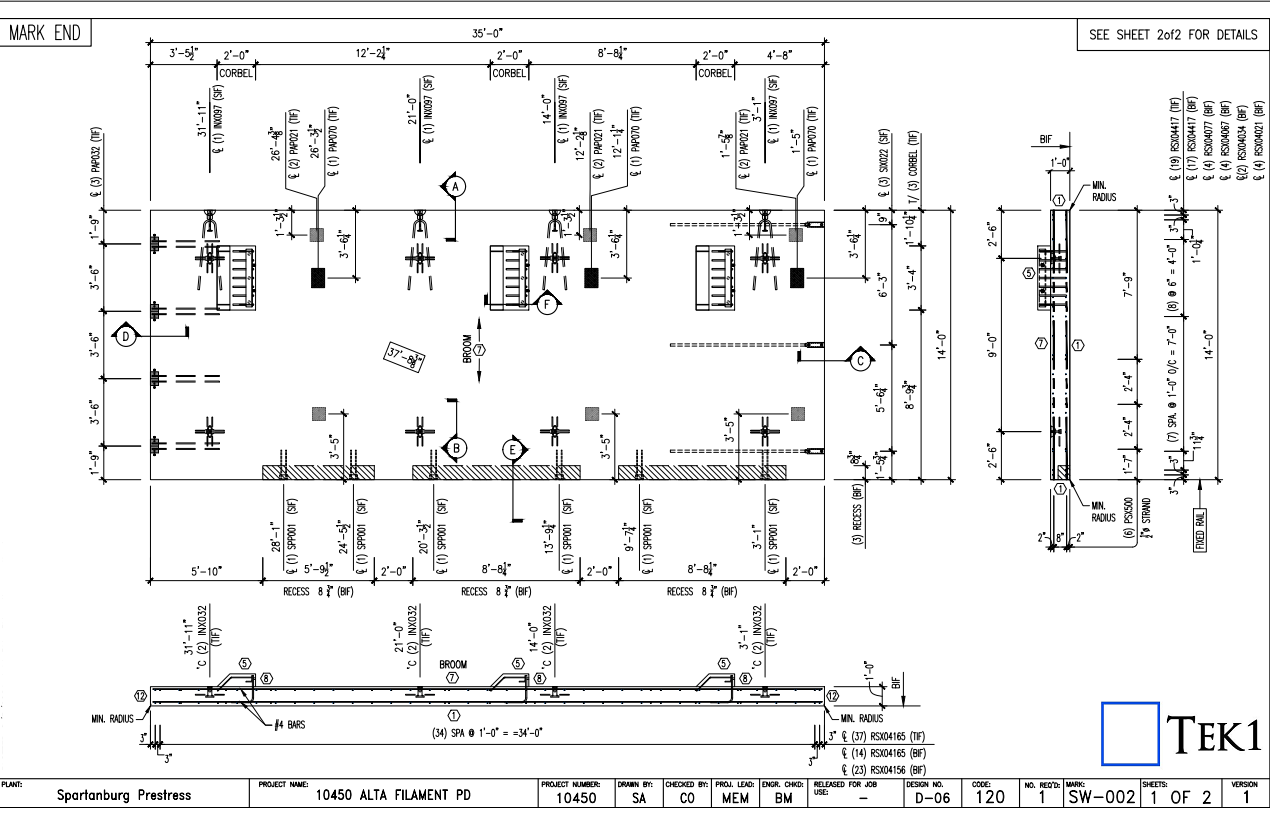

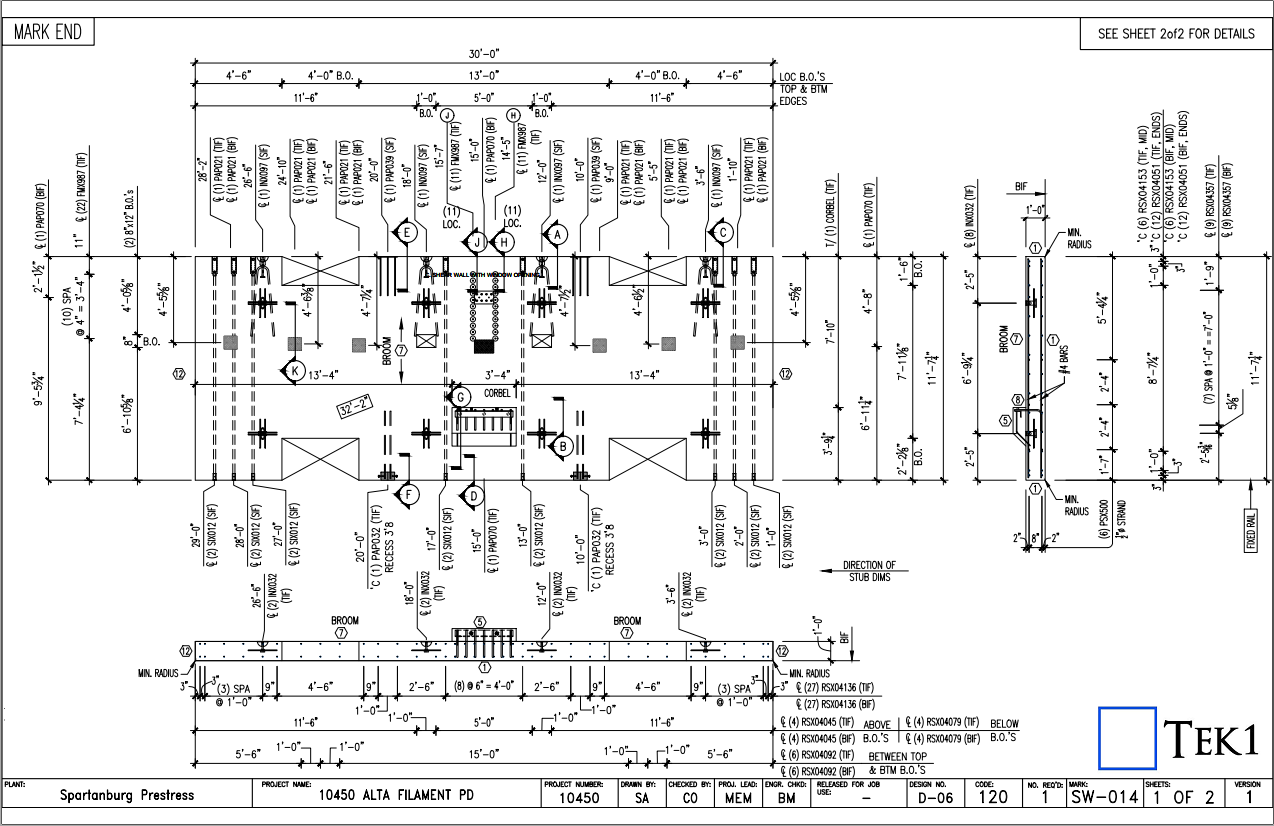

Sheet 1: Panel Profile, Reinforcement setout, and the Components Placement on both faces of the Precast Panel.

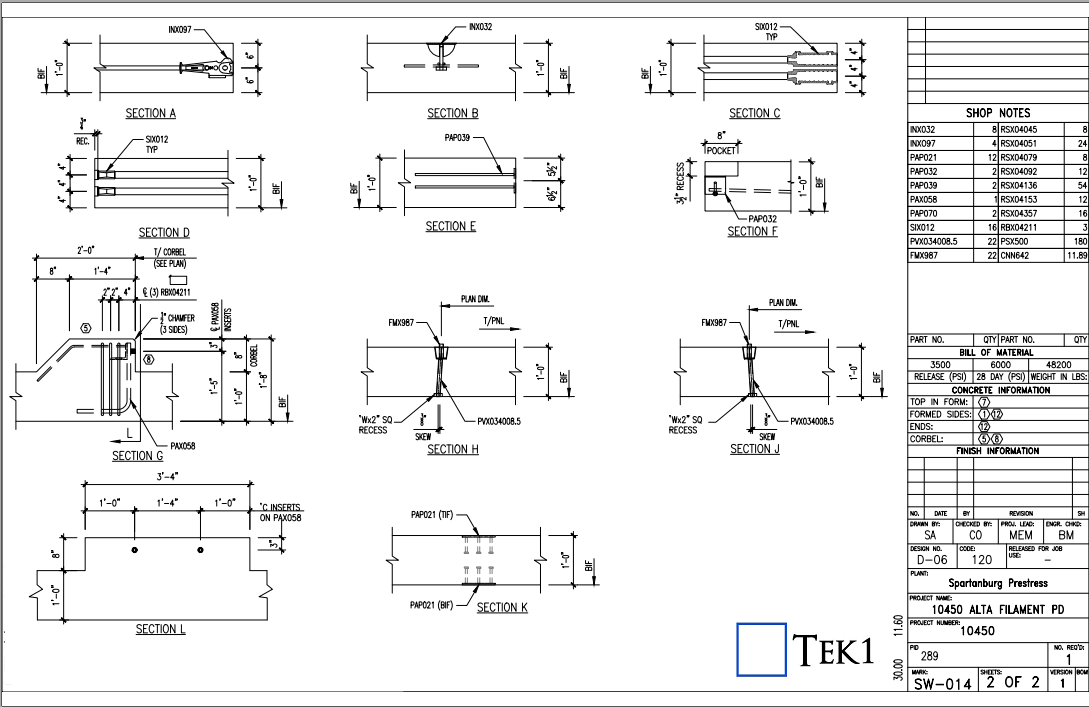

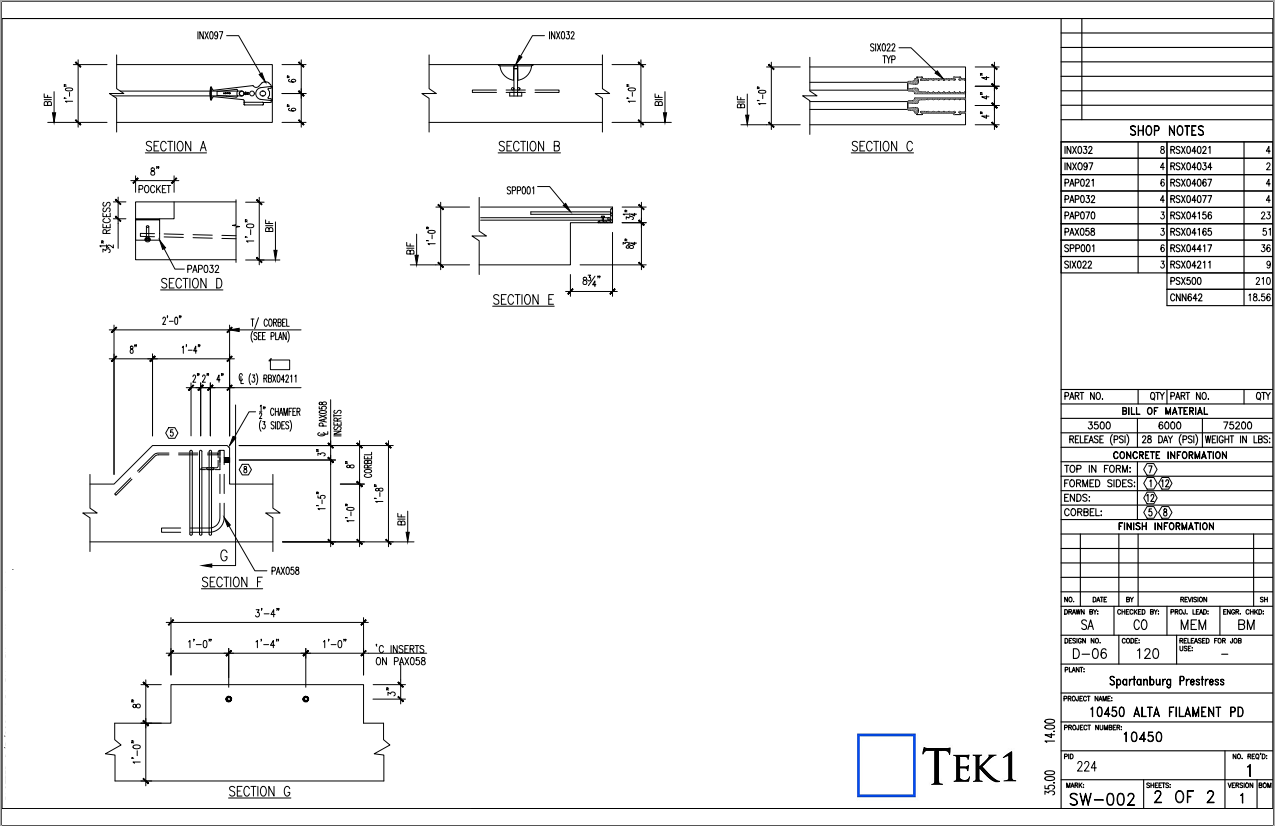

Sheet 2: Section Detail and Order Form List for the Precast Panel.

D. SHEAR WALL WITH WINDOW OPENING :

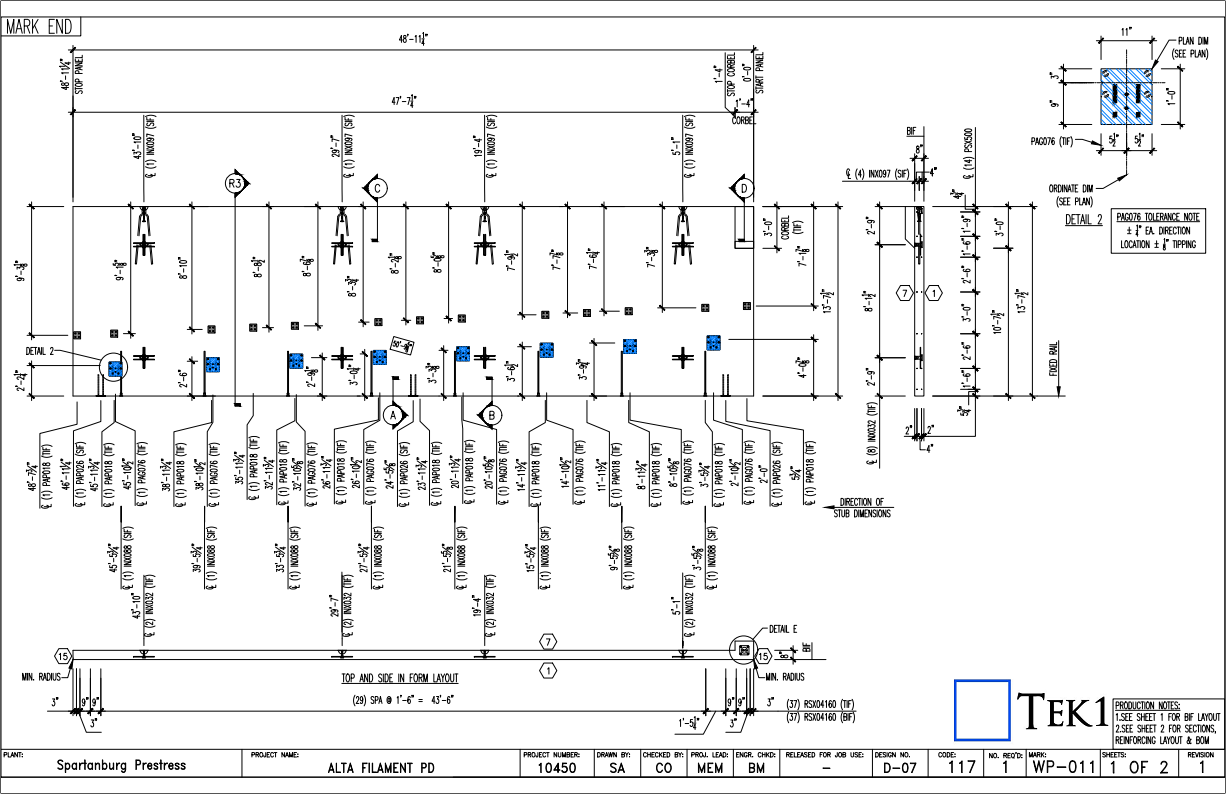

Sheet 1: Panel Profile, Reinforcement setout, and the Components Placement on both faces of the Precast Panel.

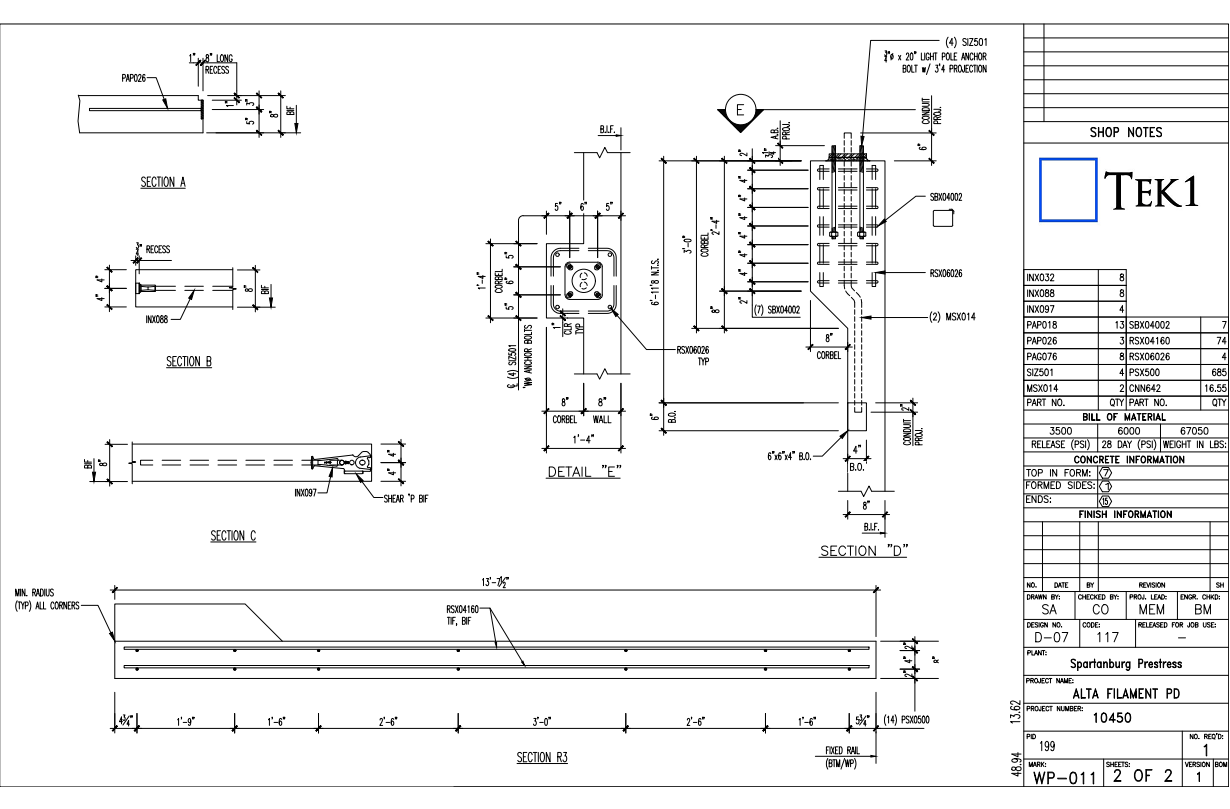

Sheet 2: Section Detail and Order Form List for the Precast Panel.

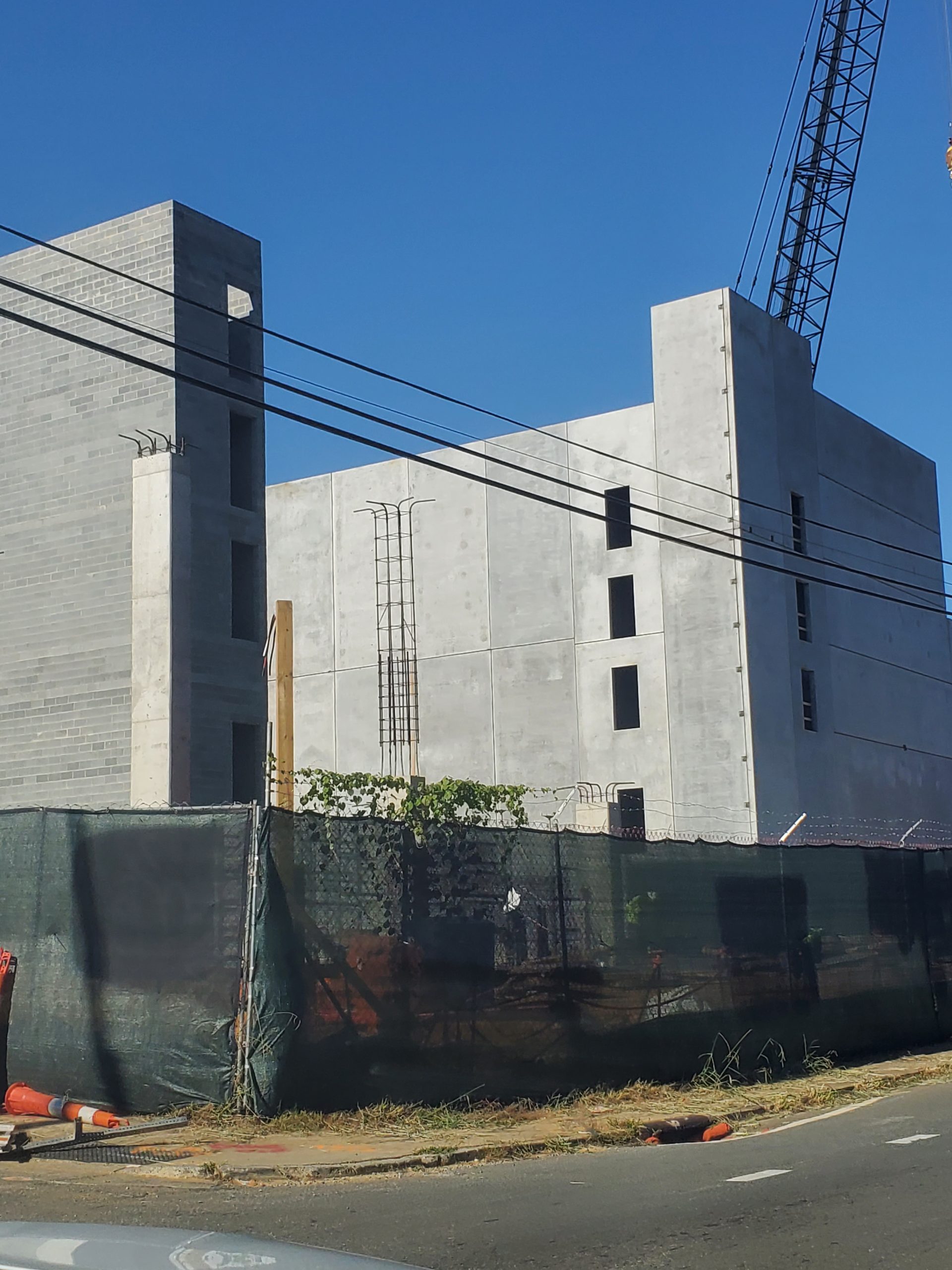

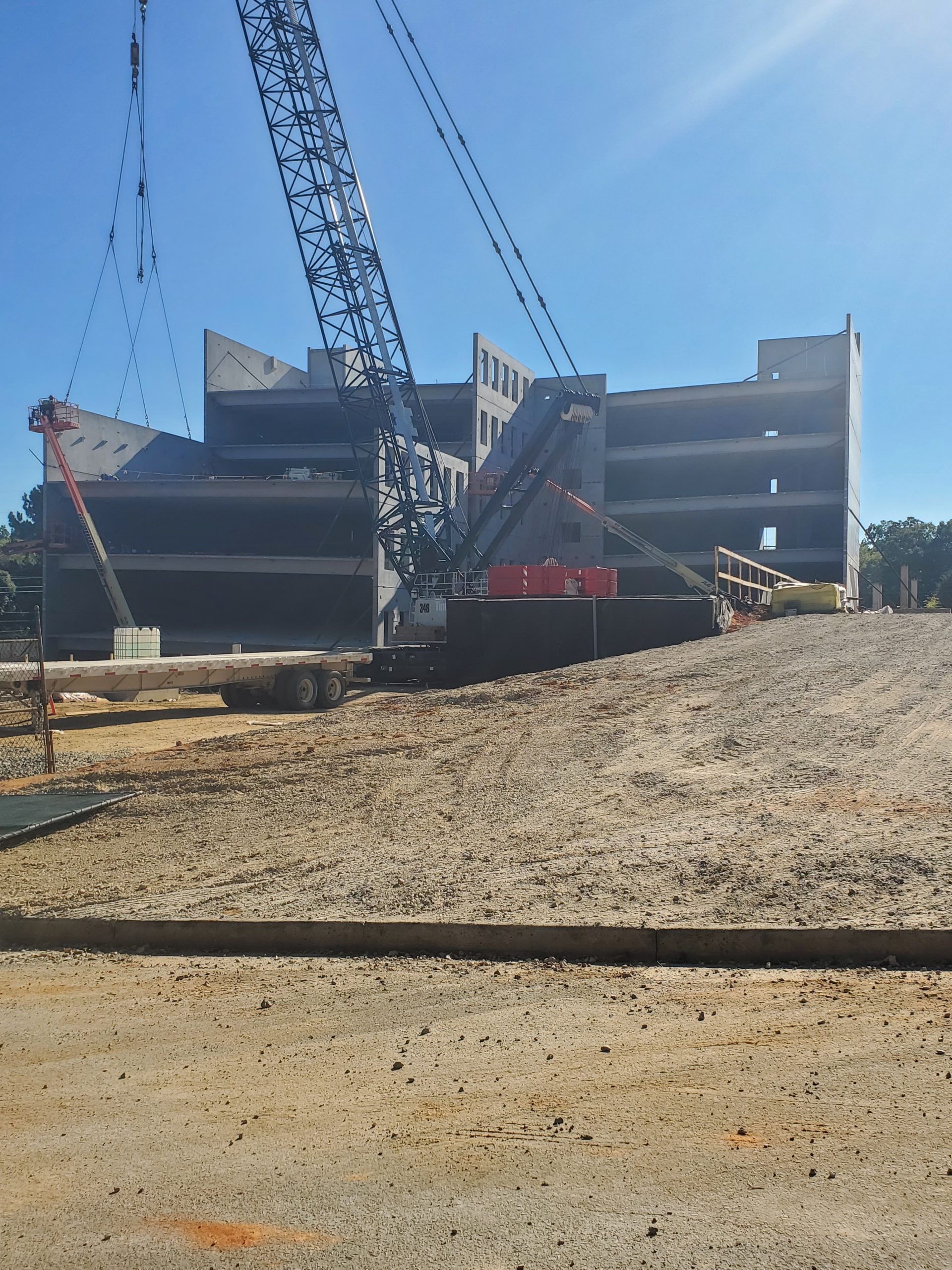

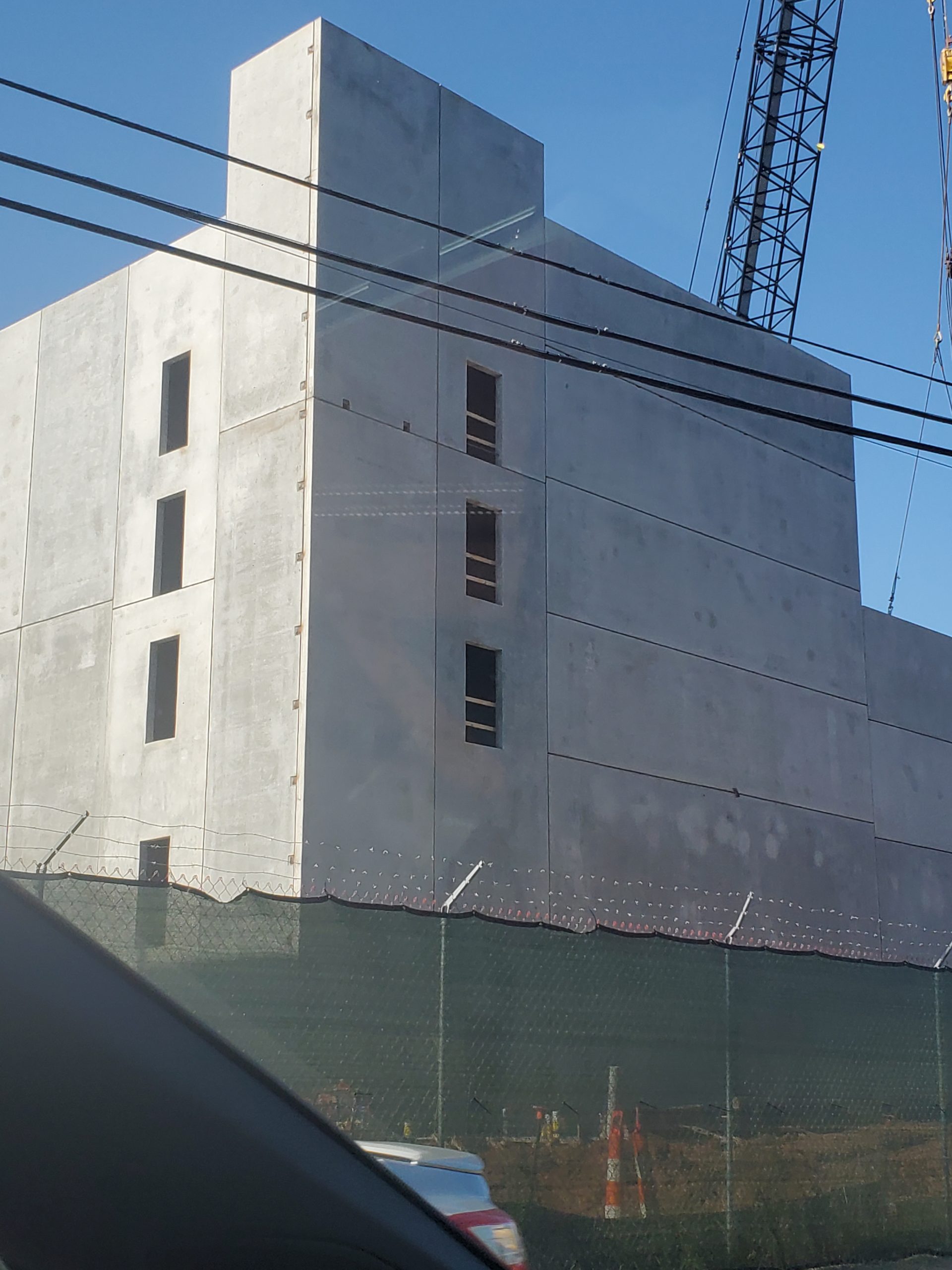

SITE IMAGES
