Project Name: Lot 49,Salt Air Circuit, Lennox Head
Done By: LGS Team
Team Manager: Venkatesh Balasubramanian
Detailed By: Siddharthan Velmurugan
Experience our LGS Model in A360 : https://autode.sk/3PgmgnM
This model is a Two-Story Building with a Hip roof system.
Our Main scope of work is to reduce the Structural steel and replace it with LGS steel Frames.
Creating Floor & Roof truss with point loads to establish the load path through proper engineering analysis.
Designed wall & Truss frames for ease of transportation.
We provide the model with Zero collision errors & each frames analyzed using Scot-Sim.

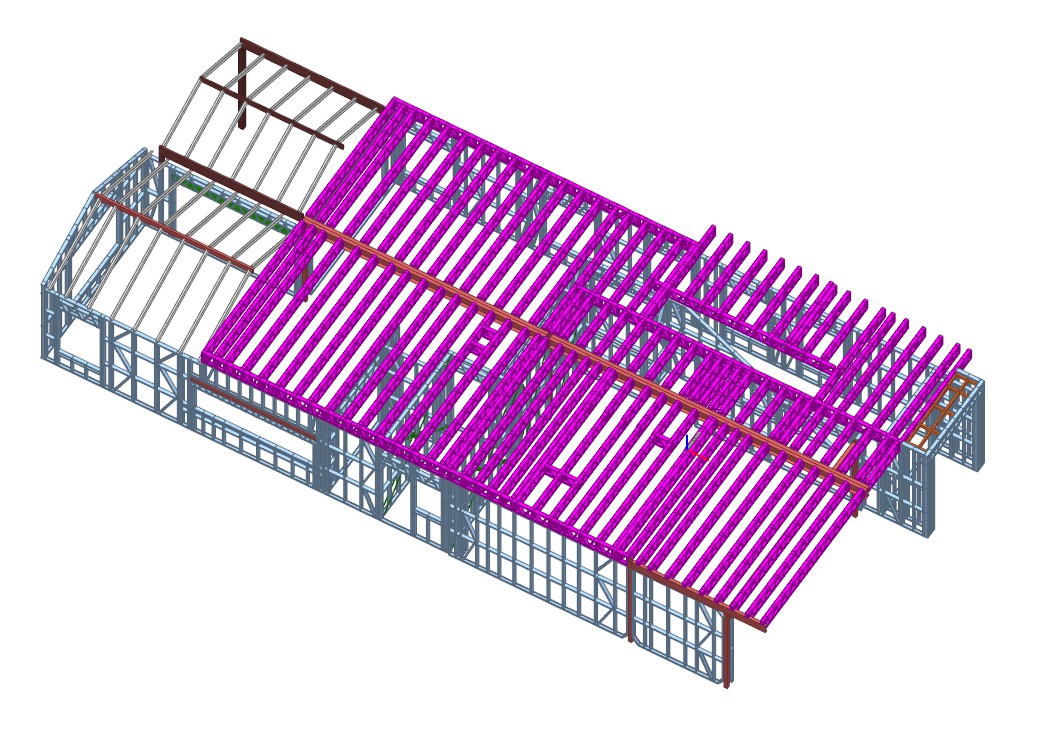

LOWER LEVEL:

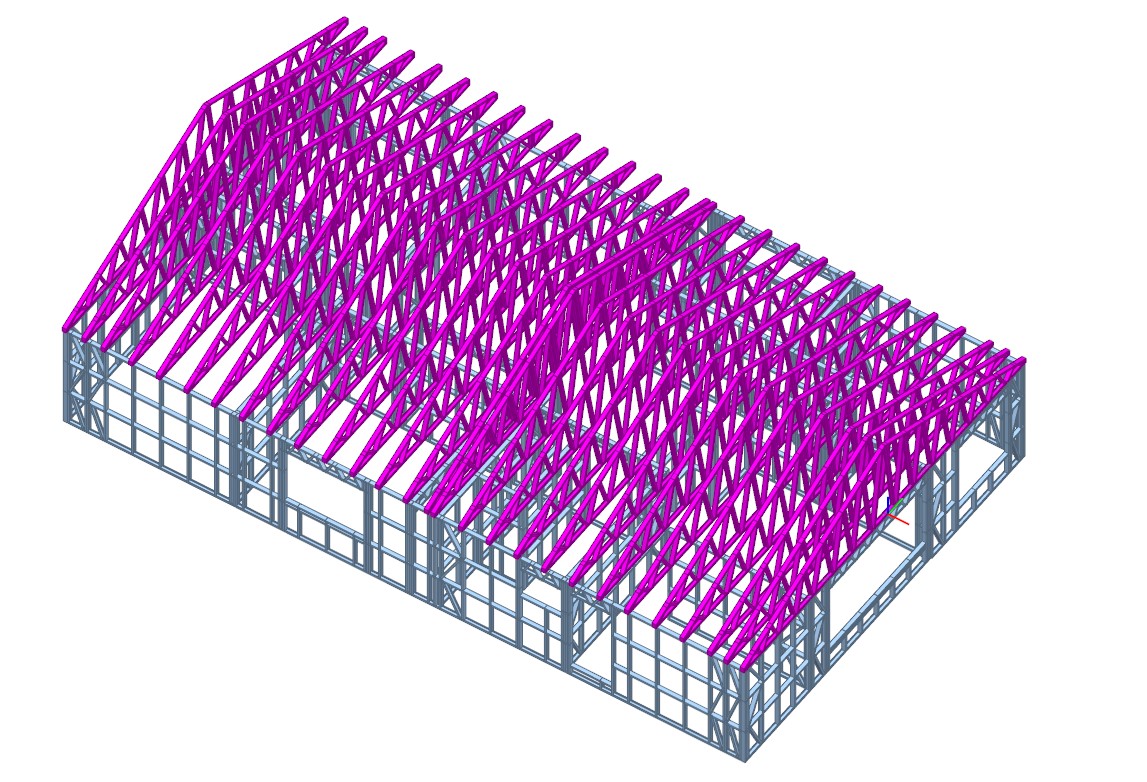

UPPER LEVEL:

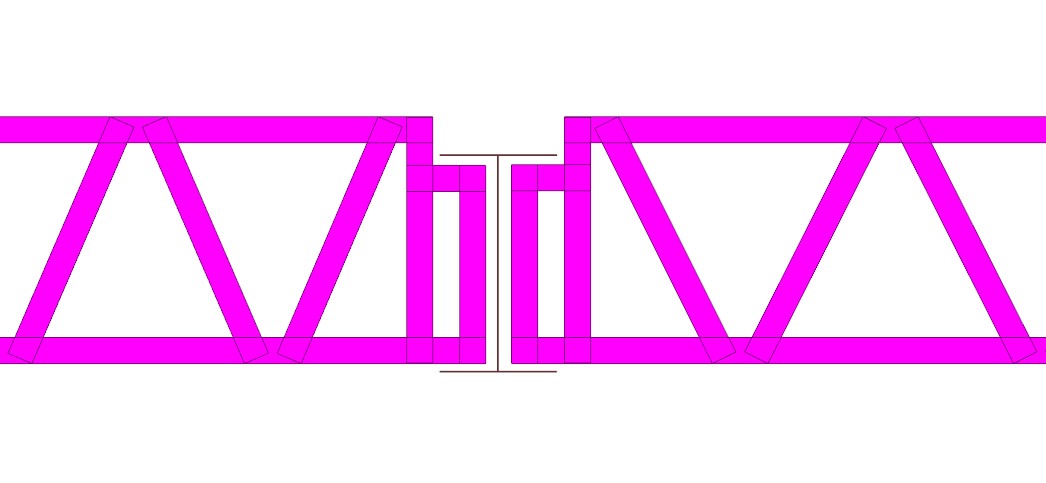

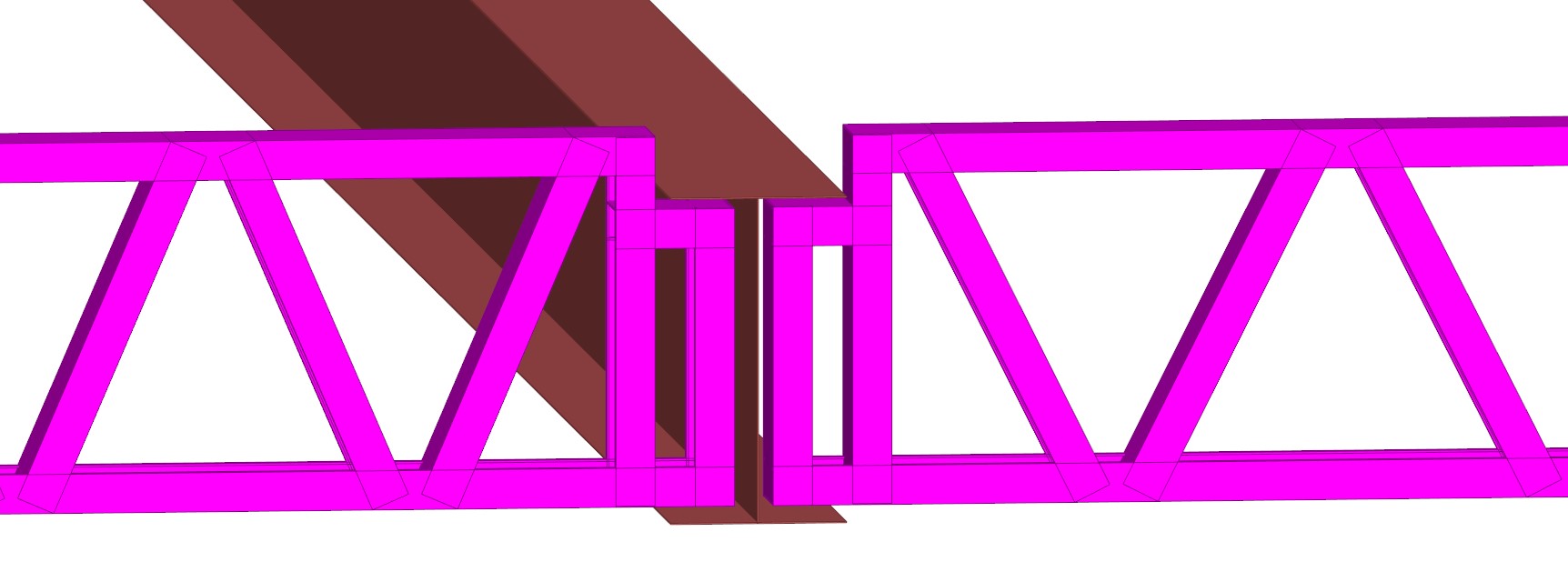

CONNECTION BETWEEN FLOOR JOIST & STEEL BEAM:
We modified the LGS frames to connect with steel beams as per our client requirements.
Some complexities that arose during the modelling process and engineering the joist. Ultimately, our client is highly satisfied with the results.
List of Deliverables:
- LGS model sdp file
- LGS model layout PDF
- Wall frame dimension drawings for each Level
- A360 link will be provided to experience the 3D version of the model
- Project engineering environment File
- Floor & Roof Truss engineering analysis
- Steel report for each level
- All documents will be issued only after client approval.
