Project Name: Amenities Block -Casino showground, NSW
Done By: LGS Team
Team Manager: Venkatesh Balasubramanian
Detailed By: Siddharthan Velmurugan
Experience our LGS Model in A360 : https://autode.sk/44TZh84
This is the single-story Amenities block.
Our scope of work includes LGS Frames & Structural Steel connection.
We found the modelling process for the LGS frame to be straight forward and the consultant’s drawings are clear and easy to understand for our work.
We Provided wall, roof and truss Frames with proper labels for identification and easy transportation.

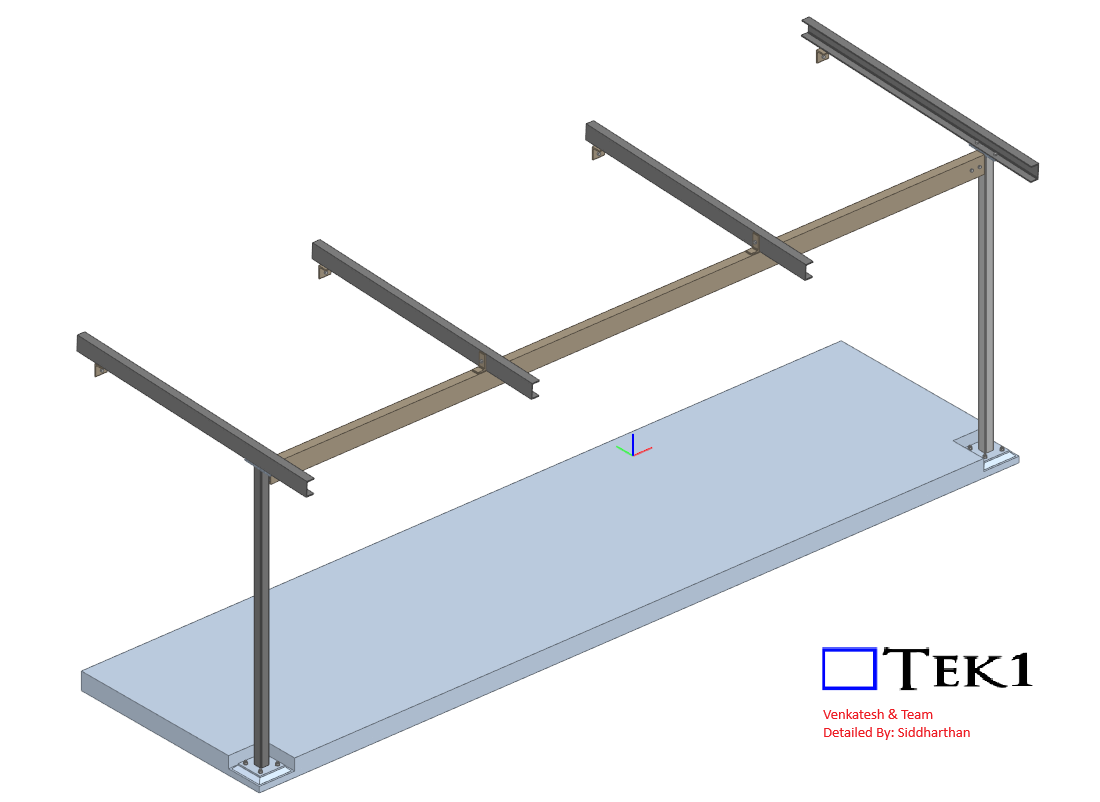

STRUCTURAL STEEL MODEL:
However, for the structural steel, we have not received any reference drawings from our client.
Then, we proposed a standard steel connections drawings suitable for this model and to obtain approval from our client.
Finally, our client is also satisfied with the proposed model we sent and has confirmed the steel connection for fabrication after requesting a change in the size of the PFC and bolts.
List of Deliverables:
- LGS model
- LGS model layout PDF
- Individual wall frame dimension drawings
- A360 link will be provided to experience the 3D version of the model
- Project engineering environment
- Roof truss engineering analysis
- Steel report for each level
Structural Steel:
- PDF (GA & Part Drawings)
- Bill of Material
- NC & DXF File
