Shop Drawing:
Shop drawings is detailed drawing of the original design of the building. It’s a drawing or set of drawings given to our consultant or Fabricator. It is used to produce the individual precast panels in the factory. Shop drawings are typically required some prefabricated components, they are Listed below.
Shop Drawing Components:
1. Lifter’s [Edge lifters – (Top & side) and face lifter’s].
2. Grout tubes & Dowel bars (Top & Bottom).
3. Props. (Face & Edge props)
4. Ferrules (Handrail, Temporary connection ferrule & Slab rebate ferrule,
steel connection ferrule).
5. Couplers.
6. Pull-out bars and starter bars.
7. Cast in Plate.
8. Strong back.
9. ID tag.
10. Any special components required for some special cases like Conduits etc.

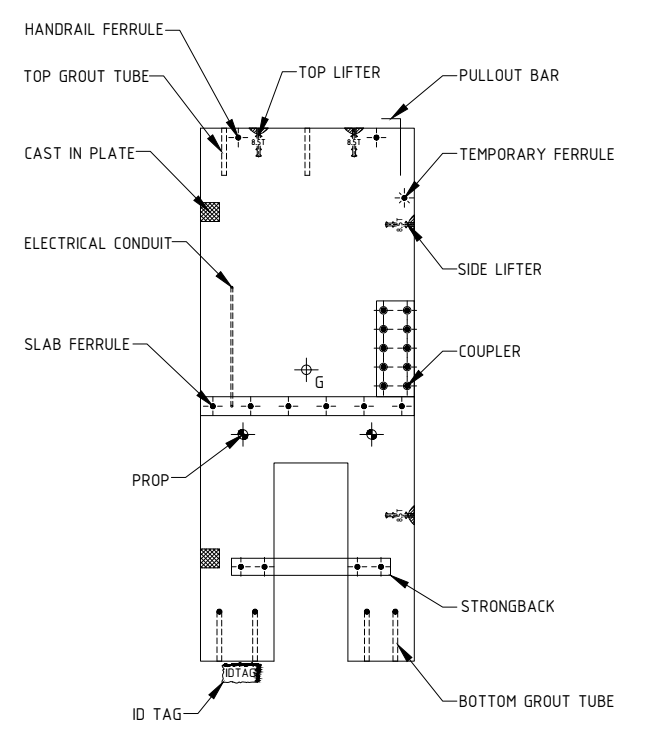

SAMPLE SHOP DRAWING ELEVATION WITH COMPONENTS
