Rules for shop welding Elbows to Stair balustrades

Shop Welding Elbows.

If the pipe is going up then do not weld the elbow to the pipe. Leave extra length on the pipe. Fabricator will cut at site and weld. (Make it slip joint)

If the pipe is horizontal then you can weld at one end.

See images

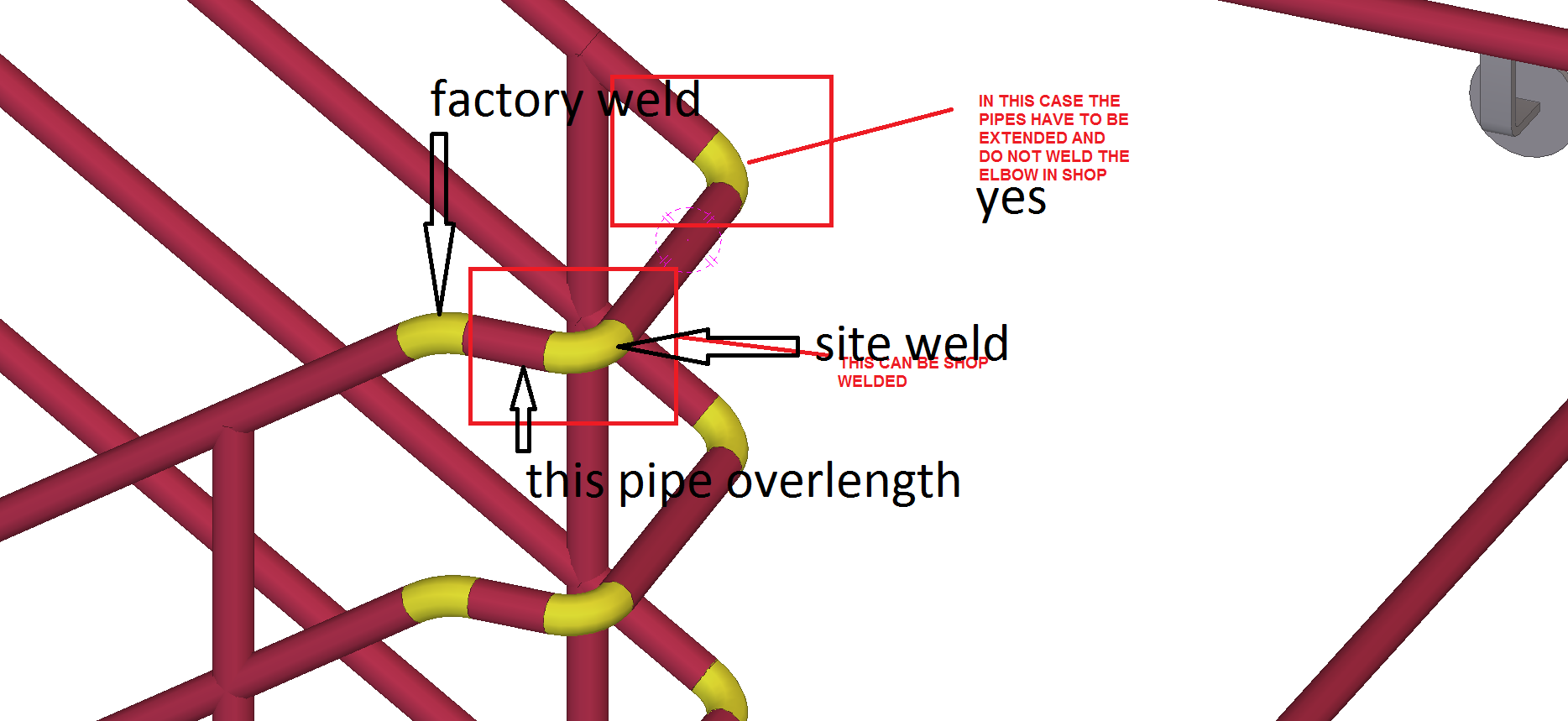

RULES-FOR-SHOP-WELDING-ELBOW
WELDING ELBOWS TO RAILINGS

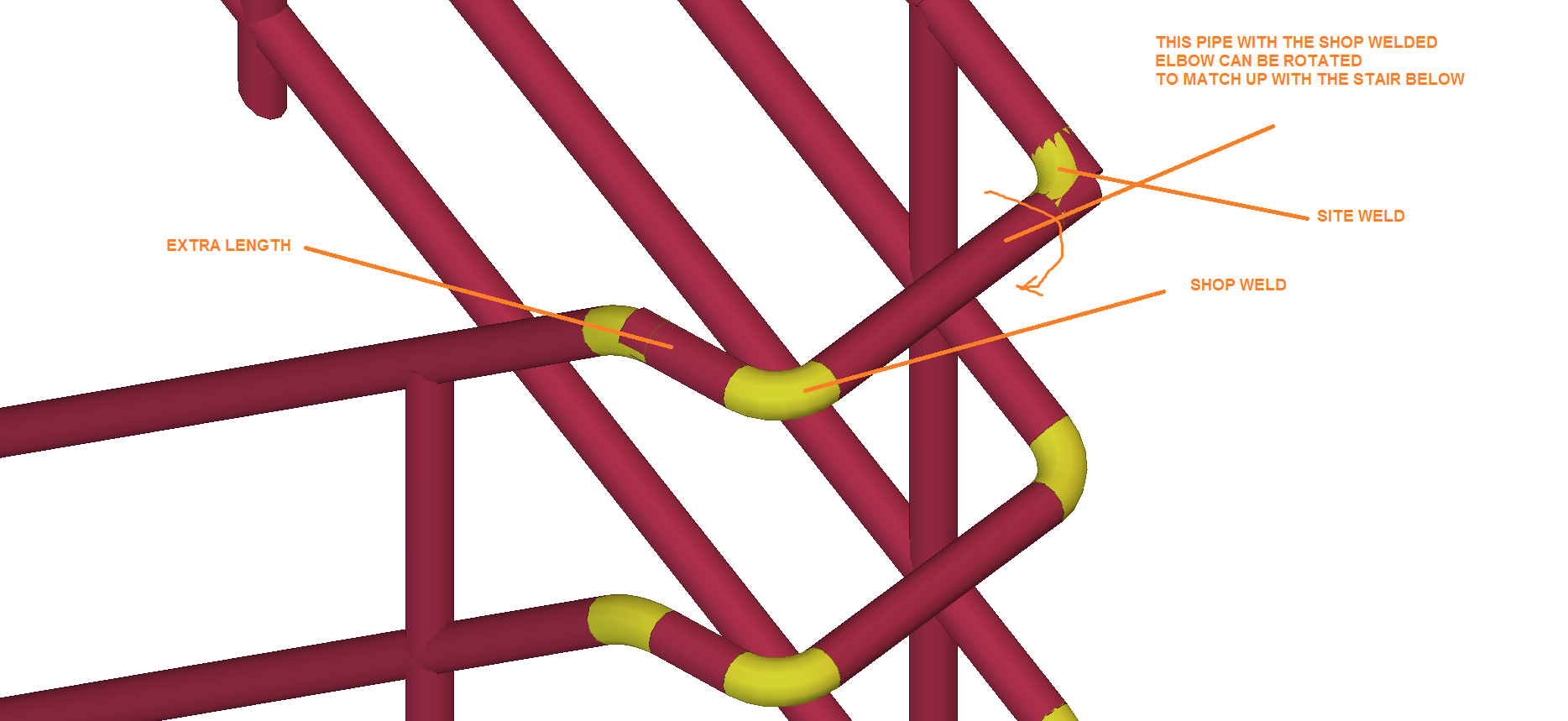

PIPES WITH EXTRA LENGTH AT ELBOW
EXTENDING PIPES TO SUIT AT SITE

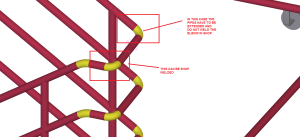

RULES-FOR-SHOP-WELDING-ELBOW-2
